eSSL FHT-TL-249 Full Height Turnstile – High-Security Access Control System
Turnstile Full Height FHT-TL-249 which has been made by eSSL is one of the most powerful and heavy-duty quality-oriented turnstiles for all types of indoor and outdoor large areas. This is not for narrow or small areas because it has a double door system for double single-time entry or exit for users.
FHT-TL-249 can also be used as one for entry and another one for exit or vice versa at the same time of entries and exits. It can work as a single door as well as a double door with double access control or attendance machines.
This Turnstile FHT-TL-249 is made from stainless steel with 304-graded material. It is a full-height turnstile to cover the full height of any entrance gate from bottom to top.
This full-height turnstile can be integrated with any type of access control feature-enabled attendance or access control devices.
Full height turnstile can work with face, finger, card, password machines, and also UHF and RFID-based readers for granting or denying access to any user.

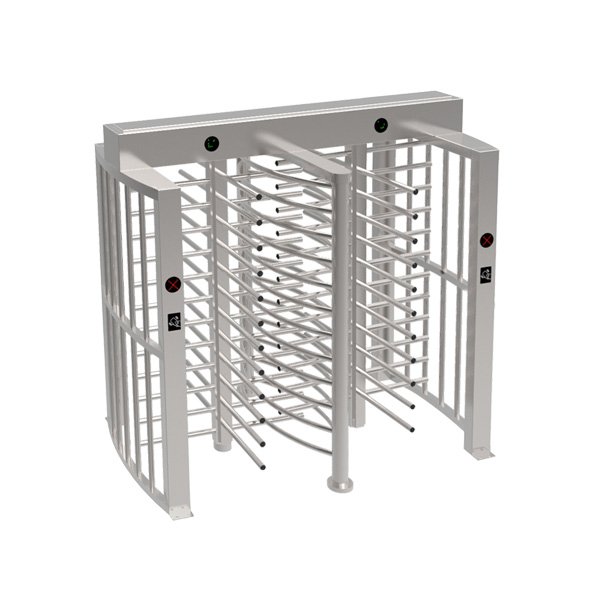

As the picture of this full-height turnstile shows it has many small-sized pipes installed in between the turnstile which reduces the intentional trespass from the device from any human being perspective.
It has two central rotational arms one in each gate which is made of 50-60 small pipes for rotating circular in the centre of each gate.
Access by one side can go through the successful punch on the attached device of the turnstile and the other side can be accessible by the successful of the other side machine or exit push button or switch.
Data collection from both sides of the users who accessed the turnstile can be collected by both end machines with the help of the LAN port connectivity of the devices. Data can be directly downloaded by successful connection with software and the access controlling machines.
Product Description: | ||
|---|---|---|
| Basic | Frame | 304 Stainless steel |
| Rotation Direction | A. Bi-Directional, B. Unidirectional | |
| Controller | Adopt micro-computer controller can | |
| be programmed according to customer needs | ||
| Interface | Standard input and output interfaces can | |
| be used for other integration systems | ||
| Signal Source | 1. Dry contact | |
| 2. High-low-level signals | ||
| Roller working Power | AC220V±10% | |
| No of arm | 4 | |
| Section Version | 90 degree | |
| Power Supply | Power Supply | AC220V±10% , DC24V3A±10% , DC12V3A±10% |
| Environment | Indoor/Outdoor | |
| Temperature | -30℃ to 80℃ | |
| Humidity | 5% to 90% | |
| Switching Time | 1s | |
| Traffic Speed | 25 person per Minute | |
| Fault Status | Power-safe and Giving a free exit/entry path | |
| Movement failure rate | 500 million trouble-free | |
| Frame Protection | Waterproof Seal | |
| Card Reader Location | 4 | |
| Installation and maintenance portal | 1 | |
| Optional Feature | Optional Feature | IC/ID reader, Barcode Reader, |
| other R/W equipment, UPS, Infrared detector | ||
