Mifare Card Encoder CR50W | ZKTeco

Mifare Card Encoder CR50W | ZKTeco

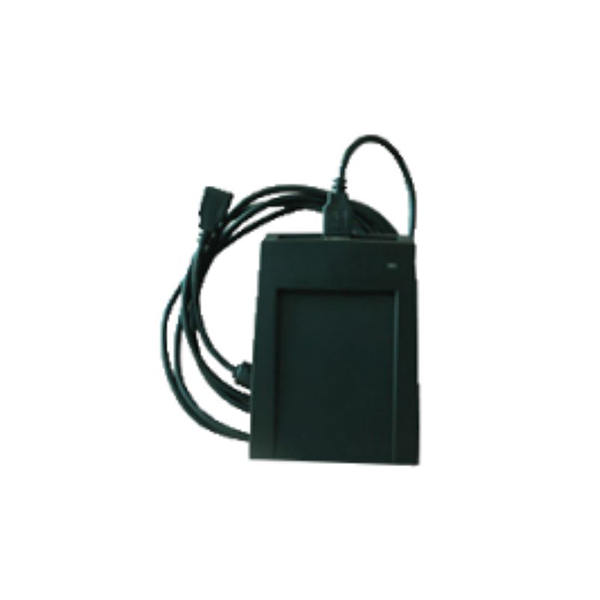

The CR50W is a compact, USB-powered MIFARE encoder/reader designed for seamless, secure contactless card management. Capable of both reading and writing standard MIFARE S50/S70-compatible smart cards at 13.56 MHz, this device offers plug-and-play convenience with LED indicators and buzzer feedback, making it ideal for hospitality, access control, POS, and smart transit environments.

https://www.youtube.com/shorts/ON3vpk_gPmI?feature=share

Key Features

• RFID Read/Write: Supports MIFARE S50/S70 cards with customizable data sectors, expiry control, and logging.
• USB Interface: Operates via USB 5 V DC, eliminating the need for external power.
• User Feedback: Built-in red/green LEDs and audible buzzer for instant read/write confirmation.
• Compatibility: Supports Windows and macOS systems.

Technical Specifications

Spec	CR50W Encoder
Card Type	MIFARE S50/S70 (ISO14443A, 13.56 MHz)
Read Range	Up to 5 cm
Power	USB 5 V DC, 65–80 mA
Connection	USB (plug-and-play)
Feedback	LED indicators (red, green); single-beep buzzer
Material & Size	ABS+PC housing; approx. 140×100×30 mm
OS Support	Windows 2000, XP, 7+, macOS

Benefits & Use Cases

• Hospitality: Streamlined card issuance for hotel guests and staff.
• Access Control: Quick card programming and deactivation for secure entry systems.
• Transit & POS: Efficient smart card issuing and balance updates at service counters.

Security & Management

• Supports card sector encryption and quick deactivation of lost or stolen cards.
• Unique card IDs enable reliable tracking, auditing, and data logging.

Setup & Operation

1. Connect the CR50W to your system via USB
2. Install necessary drivers (if required)
3. Launch compatible management software
4. Place a MIFARE card to read/write data with real-time LED and buzzer confirmation

Why Choose CR50W?

• Ideal for front desk, office, or field use
• Compact and energy-efficient
• Easy plug-and-play installation
• Reliable user feedback via LED and sound
• Wide system compatibility

Product Specifications:

Mifare Door Lock ZKTECO CR50W Technical Specification
	Material	ABS + PC with texture
	Power	USB 5v dc
	Current	Max 80mA
LED Indicators	Red	Data write successful
	Green	Data write fail
Card	Type	Mi-fare
	Frequency	13.56 MHz
	Read Range	Up to 5cm
Beeper	Single	Data write successful
Environment	Temperature	0°C – 70°C
	Humidity	10% to 90%
	Dimension (w x hx t)	140 x 100 x 30 mm
	Weight	120g
Features
	Card Read & Write Functionality
	USB Interface
	Power by USB
	LED indicator and buzzer feedback
	Compatible with Windows 2000 / 2003 / XP / Windows 7 & above versions (32bit)
