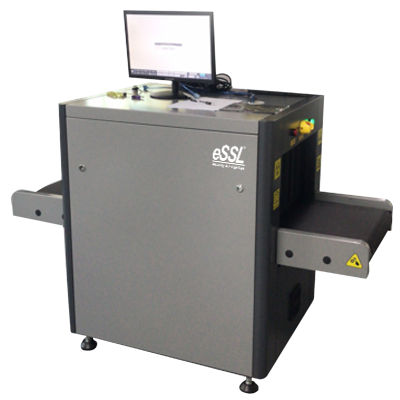

Luggage Scanner EBS 5030A Advanced X-Ray Technology | eSSL

Original price was: ₹2,599,999.00.Current price is: ₹1,599,999.00.

Product Features:

  • Channel size: 500 * 300mm (width * height)
  • Conveyor load: 100 Kg (uniform load)
  • Wire resolution : >38 AWG
  • Conveyor speed: 0.22 m’s
  • Penetration : > 8 mm steel plate
  • Spatial resolution: horizontal/vertical 1.0mm
  • 1-year offsite warranty by the manufacturing brand.

Availability: In stock

SKU: ARCESSLEBS5030A-01 Categories: ,

Advanced Security with the ESSL EBS 5030A Luggage Scanner

Discover unparalleled security with the ESSL EBS 5030A Luggage Scanner, featuring advanced X-ray technology for precise screening. Ensure efficient and reliable security checks with energy-saving design and robust protection functions. Upgrade your safety measures today!

Cutting-Edge X-Ray Technology

Unveil the unseen with the ESSL EBS 5030A Luggage Scanner, equipped with an 80 KV X-ray generator that penetrates over 8 mm of steel plate, ensuring thorough security checks. Luggage scanner EBS-5030A has high-resolution imaging capabilities, with a wire resolution greater than 38 AWG and a spatial resolution of 1.0mm, providing precise scans for enhanced safety protocols.

Efficient and Versatile Design

Experience seamless operations with the ESSL EBS 5030A’s user-friendly analogue interface, allowing quick control adjustments for optimal performance.

The Luggage Scanner has a robust conveyor system that supports up to 100 Kg of uniform load, while maintaining a conveyor speed of 0.22 m/s, making it ideal for various environments requiring efficient security screening.

Reliability Redefined

With a noise level below 58 dB (A) and a power wastage of just 0.5 KW, the ESSL EBS 5030A prioritizes energy efficiency and user comfort.

The Luggage Scanner has a sealed oil cooling and industrial fan cooling system that ensures consistent performance even under demanding conditions, backed by protection functions against over voltage, over current, and over temperature.

Product Specifications:

PRODUCT PARAMETERS

  • Channel size: 500 * 300mm (width * height)
  • Conveyor load: 100 Kg (uniform load)
  • Wire resolution : >38 AWG
  • Conveyor speed: 0.22 m’s
  • Penetration : > 8 mm steel plate
  • Spatial resolution: horizontal/vertical 1.0mm

X-RAY GENERATOR

  • Control interface: analogue interface
  • Anode voltage: 80 KV
  • Tube Current : 0. C mA
  • Work period: 100 minutes, no need to preheat
  • Cooling method: sealed oil cooling industrial fan cooling
  • Protection function: over voltage. over current. over temperature protection

INSTALLATION DATA

  • Noise level: < 58 dB (A)
  • Weight: 220 Kg
  • Power wastage : 0.5 KW (k1AX)
  • System Power: AC220V*10. CO*5Hz
  • Height of belt: 650 mm
  • External dimensions : 1500 mm (L) * 770 mm (W) * 1100 mm (H)
  • Package size : 1570 mm (L) * 40 mm (W) * 1270 mm (H)
Weight 220000 g
Dimensions 150 × 77 × 110 cm
