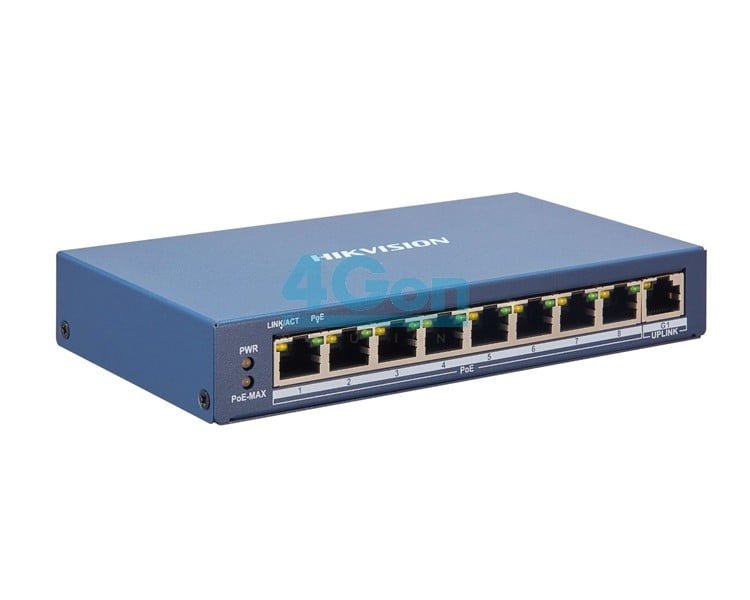

Hikvision DS-3E1309P-EI 8-Port Fast Ethernet Smart PoE Switch

Product Features:

  • 8 × 100 Mbps PoE RJ45 ports, 1 × gigabit network RJ45 port
  • IEEE 802.3at/at standard for PoE ports
  • Network topology management, alarm push, network health monitor
  • 6 KV surge protection for PoE ports
  • Up to 300 m long-range transmission
  • AF/AT camera can reach up to 300 m in extended mode
  • Reliable fan-free design
  • Solid high-strength metal shell
  • Visualized Topology Managemen
Category:

Hikvision DS-3E1309P-EI 8-Port Fast Ethernet Smart PoE Switch

The Hikvision DS-3E1309P-EI  is a 9 port unmanaged desktop PoE (Power over Ethernet) switch that provides power and data over a single Ethernet cable via 8 100 Mbps PoE RJ45 ports and 1-gigabit network RJ45 port, making it perfect for small-scale IP surveillance networks.

Hikvision DS-3E1309P-EI can automatically detect and supply power to any compatible PoE camera allowing you to expand your network without separate power cables, making installation quicker, easier, and more cost-effective.

The Hikvision DS-3E1309P-EI features a maximum of 300-meter, ultra-long distance transmission.

This means you can simplify your network and maximise your hardware investment with fewer switches to deploy, and at the same time extend your network coverage.

In the event of network congestion, important data is transmitted with priority thanks to VIP-port-guarantee technology.

Product Specifications:

Network parameters
Port number 8 × 100 Mbps PoE RJ45 ports, and 1 × gigabit network RJ45 port
Port type RJ45 port, full-duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab
Working mode Standard mode (default), Extend mode
Ports for long-distance transmission Ports 1 to 8
MAC address table 16 K
Switching capacity 3.6 Gbps
Packet forwarding rate 2.6784 Mpps
Internal cache 4 Mbits
PoE power supply
PoE power pin Ports 1 to 8: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously
PoE port Ports 1 to 8
Max. port power 30 W
PoE power budget 110 W
Software function
Device maintenance Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters
Typology display Support typology display
Port configuration Support rate, flow control, and switch configuration
PoE function IEEE 802.3at/af device provides power supply
VIP ports function Support data of ports in red area forwarded in priority
Device status alarm Support the device status, PoE_MAX, and PoE status alarm
