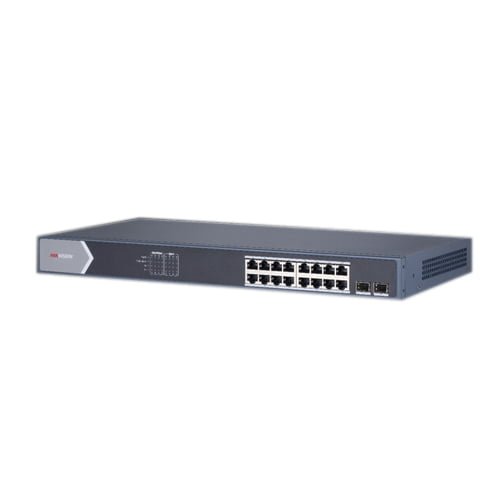

Hikvision DS-3E0518P-E/M 16-Port Gigabit Unmanaged PoE Switch
The Hikvision DS-3E0518P-E/M from Hikvision is a 16-port Unmanaged Gigabit PoE Switch. The DS-3E0518P-E switches are layer 2 Gigabit PoE unmanaged switches, providing 16 Gigabit PoE ports, one 10/100/1000 Mbps RJ45 port, and one 10/100/1000 Mbps SFP fiber optical port.
The switches provide advanced PoE technology and connect other devices with high performance. Meanwhile, all Gigabit ports guarantee the stable transmission of data.
Seamless Network Integration: DS-3E0518P-E/M Overview
Experience robust network connectivity with the Hikvision DS-3E0518P-E/M, a 16-port Gigabit Unmanaged PoE Switch. This layer 2 Gigabit PoE unmanaged switch is equipped with 16 Gigabit PoE ports, a 10/100/1000 Mbps RJ45 port, and a 10/100/1000 Mbps SFP fiber optical port. Connect devices with high performance and enjoy stable data transmission across all Gigabit ports.
Key Features:
- Hikvision DS-3E0518P-E/M has 16 Gigabit PoE ports for versatile device connections
- Additional RJ45 and SFP fiber optical ports for flexibility
- Stable data transmission with advanced PoE technology
Advanced Connectivity: Gigabit Ports and Switching Capacity
The Hikvision DS-3E0518P-E/M ensures advanced connectivity with 16 Gigabit PoE ports, guaranteeing stable data transmission. With a switching capacity of 36 Gbps, this unmanaged switch facilitates seamless communication between devices. The inclusion of RJ45 and SFP fiber optical ports adds flexibility to your network setup.
Key Specifications:
- Switching Capacity: 36 Gbps
- Port Number: 16 x Gigabit PoE ports, 2 x Gigabit SFP fiber optical ports
- Forwarding Mode: Store-and-forward switching
- Packet Forwarding Rate: 26.784 Mpps
Power Over Ethernet (PoE) Efficiency
Harness the efficiency of Hikvision DS-3E0518P-E/M power over Ethernet with IEEE 802.3af and IEEE 802.3at standards. Ethernet cable 1/2/3/6 provides power supply, with ports 1 to 16 supporting PoE. Benefit from a substantial PoE power budget of 125 W, ensuring reliable power delivery to connected devices.
Key Specifications:
- PoE Standard: IEEE 802.3af, IEEE 802.3at
- Max. Port Power: 30 W
- PoE Power Budget: 125 W
- Max. Power Consumption: 150 W
Product Specifications:
| Brand | Hikvision |
| Model Name/Number | DS-3E0518P-E/M |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Mac Address Table | 8 K |
| Operating Humidity | 5% to 95% (no condensation) |
| Operating Temperature | -10 degrees C to 55 degrees C (14 Degree F to 131 Degree F) |
| Switching Capacity | 36 Gbps |
| Port number | 16 x Gigabit PoE ports, 2 x Gigabit SFP fibre optical ports |
| Port type | RJ45 port, full-duplex, MDI/MDI-X adaptive |
| Forwarding mode | Store-and-forward switching |
| Packet forwarding rate | 26.784 Mpps |
| Internal cache | 4.1 Mbits |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ethernet cable 1/2/3/6 provides a power supply |
| PoE port | Ports 1 to 16 |
| Max. port power | 30 W |
| PoE power budget | 125 W |
| Max. power consumption | 150 W |
| Shell | Metal material, no fan equipped. |
| Net weight | 2.500 kg (5.51 lb) |
| Gross weight | 3.570 kg (7.87 lb) |
| Dimension (L x H x D) | 440 mm x 44 mm x 220.8 mm (17.3″ x 1.7″ x 8.7″) |
| Storage temperature | -40 Degree C to 85 Degree C (-40 Degree F to 185 Degree F) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 100 to 240 VAC, 50/60 Hz, 2.5 A (Max) |
| Power consumption in idle | 25 W |
