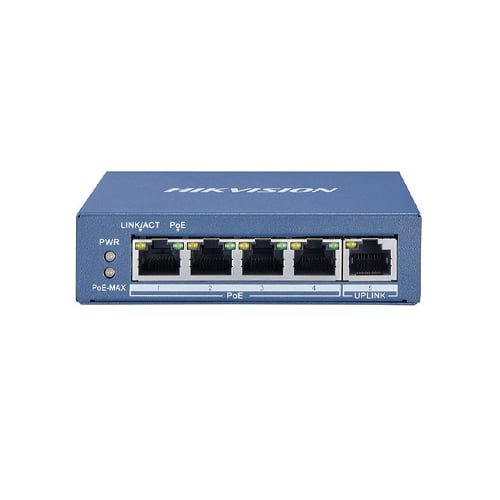

Hikvision DS-3E0505P-E/M 4-Port Gigabit Unmanaged PoE Switch

Hikvision DS-3E0505P-E/M 4-Port Gigabit Unmanaged PoE Switch

The Hikvision DS-3E0505P-E/M 4-Port is an Unmanaged Gigabit PoE Switch that requires no configuration and contains up to 24 gigabit ports. It is ideal for managing simple installations that have a large volume of video traffic from high-megapixel IP cameras.

This series consists of basic standalone switches with gigabit capability on all ports, which allows for multiple PoE field switches to be connected on one core switch, which saves space and reduces the need to install additional devices.

Streamlined Video Traffic Management

The Hikvision DS-3E0505P-E/M 4-Port is a powerhouse when it comes to managing video traffic, especially from high-megapixel IP cameras.

With its 4-port configuration and 24-gigabit ports, this unmanaged Gigabit PoE switch offers seamless connectivity for simple installations. Ideal for scenarios with a large volume of video data, it ensures smooth transmission without the need for complex configurations.

Efficient Power Distribution

Hikvision DS-3E0505P-E/M 4-Port equipped with IEEE 802.3af and IEEE 802.3at PoE standards, this switch supports a 4-core power supply and delivers power through Ethernet cable cores 1/2/3/6.

The PoE ports (Ports 1 to 4) can each provide a maximum power of 30W, with a total PoE power budget of 60W. This ensures efficient power distribution to connected devices, eliminating the need for additional power sources.

Compact Design and Temperature Resilience

Designed with practicality in mind, the Hikvision DS-3E0505P-E/M 4-Port features a compact, fan-free metal shell. This not only saves space but also ensures a noise-free operation.

With an operating temperature range of -10°C to 55°C, a storage temperature range of -40°C to 85°C, and an operating humidity range of 5% to 95%, this switch is built to withstand diverse environmental conditions.

Product Specification:

Mac Address Table	2k
Operating Humidity	5% to 95% (no condensation)
Operating Temperature	-10 degrees C to 55 degrees C (14 degrees F to 131 degrees F)
Switching Capacity	10 Gbps
PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Power Pin	Support 4-core power supply and Ethernet cable 1/2/3/6 provide the power supply.
PoE Port	Ports 1 to 4
Max. Port Power	30W
PoE Power Budget	60W
Max. Power Consumption	65W
Port Number	4 x Gigabit PoE ports, and 1 x Gigabit RJ45 port
Port Type	RJ45 port, full-duplex, MDI/MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Forwarding Mode	Store-and-forward switching
Packet Forwarding Rate	7.44 Mpps
Internal Cache	1 Mbits
Shell	Metal material, a fan-free design
Gross Weight	0.84 kg (1.85 lb)
Net Weight	0.26 kg (0.57 lb)
Dimension (L x H x D)	105 mm x 27.6 mm x 83.1 mm (4.1 x 1.1 x 3.3inch)
Storage Temperature	-40 degrees C to 85 degrees C (-40 degrees F to 185 degrees F)
Storage Humidity	5% to 95% (no condensation)
Power Supply	48 VDC, 1.35 A
Power Consumption In Idle	5W
