Full Height Turnstile Gate FHT-TL-149 | eSSL
Full Height Turnstile Gate Single Door FHT-TL-149 by eSSL is one of the most powerful and heavy-duty quality turnstiles made by the eSSL for all types of indoor and outdoor areas.
Full Height Turnstile Gate FHT-TL-149 is made from stainless steel with 304 graded material. It is a full-height turnstile to cover the full height of any entrance gate from bottom to top.
This Full Height Turnstile Gate can be integrated with any type of access control feature-enabled attendance or access control devices.
This full height turnstile gate can work with face, finger, card, and password machines, and also UHF and RFID-based readers for granting or denying access to any user.

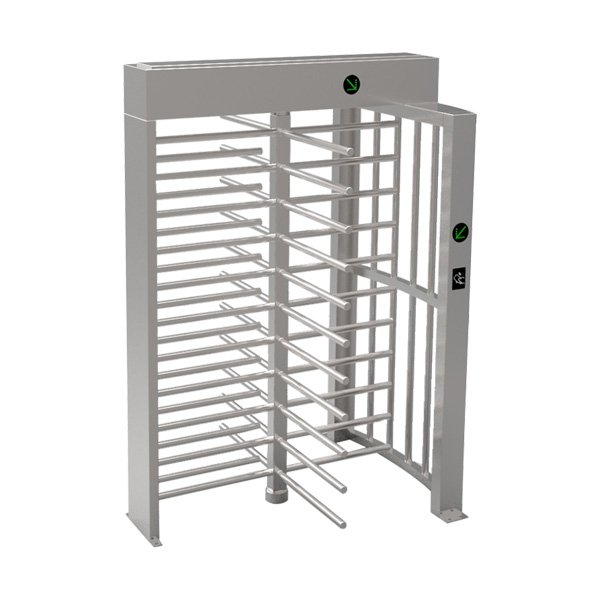

As the picture of this full height turnstile gate shows it has many small-sized pipes installed in between the turnstile which reduces the intentional trespass from the device from any human being’s perspective.
It has three arms to handle 3 users at a time and circular movement from inside to outside or vice versa.
Access by one side can go through the successful punch on the attached device of the turnstile and the other side can be accessible by the successful of the other side machine or exit push button or switch.
Data collection from both sides of the users who accessed the turnstile can be collected by both end machines with the help of the LAN port connectivity of the devices. Data can be directly downloaded by successful connection with software and the access controlling machines.
Product Description: |
||
|---|---|---|
| Power Supply | Power Supply | 100V ~ 240V AC |
| Control Circuit | 24V DC | |
| Power Consumption | 30W | |
| Operating Temper range | -25°C ~ +70°C | |
| Protection level (IP) | ≥ 44 | |
| Humidity | 95% | |
| Hydraulic Damper | Adjustable | |
| Solenoid | 24V DC 100% | |
| Throughout | Person | |
| Signal Output | 12V Pulse | |
| Communication Interface | RS485 or TCP IP | |
| Passage width | ≤ 650mm | |
| Frequency | ≤ 50Hz or 60Hz | |
| Electro-magnetic drive | DC | |
| Section version | 120 degree | |
| No of arms | 3 arms | |
| Dimensions | Dimensions | 1630 x 1500 x 2310 mm |
| Net weight | 220 kg | |
