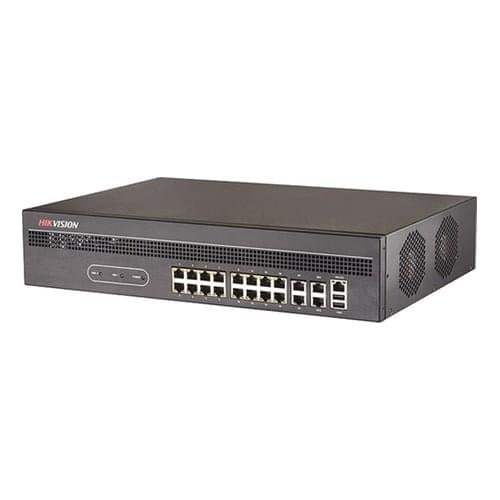

Video Decoder DS-6916UDI 16-Channel | Hikvision
Video Decoder DS-6916UDI 16-Channel | Hikvision

Video Decoder DS-6916UDI 16-Channel | Hikvision

Product Features:

  • DS-6916UDI provides HDMI (adaptable to DVI-D) and BNC output interfaces.
  • Up to 4K (3840 x 2160@30 Hz) via HDMI interface (only for even interface), and up to 1080p@60Hz via VGA interfaces
  • Up to 16-ch decoding at 12 MP resolution (DS-6916UDI)
  • H.265+/H.265, H.264+/H.264, MPEG4, and MJPEG video stream formats.
  • PS, RTP, TS, ES, HIK encapsulation formats
  • Supports window opening and window roaming
  • Three encoding levels. baseline, main, and high-profile
  • G/722, G711A, G726, G711U, MPEG2-L2, and AAC audio stream formats
  • Accessible by panoVu network camera
  • Remote video files’ decoding output.
  • Supports window opening and window roaming.
  • Supports multi-screen control with PC installed with RSC server.
  • Supports Wi-Fi module access to display the signal from an IOS/Android mobile phone or pad on the video wall.
  • Wi-Fi can be enabled via the Web browser or client software. You can stream and decode the video on the video wall when Wi-Fi is enabled if no wired network can be accessed.
  • 2-year offsite warranty by the manufacturing brand.
Category:

The Video Decoder DS-6916UDI 16-Channel | Hikvision Designed for the high-definition video monitoring system, the DS-6900UDI Decoder is developed based on an embedded hardware platform, ensuring high reliability and stability of the system running.

Video Decoder DS-6916UDI 16-Channel is capable of simultaneous decoding video for 16-ch@12MP, 32-ch@8MP, 48- ch@5MP, 80-ch@3MP, 128-ch@1080p simultaneous decoding, and outputs decoded video via BNC, VGA, or HDMI interfaces, and it also supports multiple video stream formats like H.265, H.264+, H.264 and MPEG4. The decoded video can be displayed on a video wall or large screen.

Unrivaled 16-Channel Decoding

Unlock unparalleled decoding capabilities with the Video Decoder DS-6916UDI. This powerhouse is designed to handle a remarkable 16 channels simultaneously, delivering unrivaled decoding power. Elevate your surveillance experience with the ability to monitor and analyze multiple video feeds with precision.

Advanced Video Processing

Experience advanced video processing technology embedded in the video Decoder DS-6916UDI. This decoder ensures that every frame is processed with precision, providing a clear and detailed view of the monitored areas. Stay ahead in security monitoring with cutting-edge video processing capabilities.

Seamless Integration into Surveillance Systems

Seamlessly integrate the video Decoder DS-6916UDI into your surveillance system for a cohesive and efficient operation. This video decoder is optimized for compatibility and ease of integration, ensuring that it becomes an integral part of your security infrastructure without any hassle.

Product Specification:

Manufacturer Hikvision
Model code DS-6916UDI
Video Inputs 16 channels
Data Input Yes
Alarm Input Yes
Compression Type H.264/ JPEG /M-JPEG/MPEG-4
Interface 10/100/1000 Mbps
Resolution TVL 12 MP
Image per second (IPS) 30 fps
Physical Specifications Dimensions mm: 440 x 311 x 80
Weight g: 6,400
Electrical Specifications Voltage: 100 ~ 240 V AC
Power Consumption: <108 W
Environmental Specifications Operating Temperature oC: -10 ~ +55 C (14 ~ 131 F)
Operating Humidity %: 10 ~ 90
