Elevate Your Operations: UHF Reader Handheld C4050 by IDTech

Elevate your operations with the UHF Reader Handheld C4050 by IDTech. Experience unmatched UHF RFID performance, redefine mobility with its compact design and enjoy effortless operation. Discover the future of RFID technology now.

Unmatched Performance in UHF RFID Technology

Step into the future of data capture with the UHF Reader Handheld C4050 by IDTech. This handheld marvel delivers unmatched performance in UHF RFID technology, ensuring high-speed and accurate data collection. Whether you’re managing inventory, tracking assets, or enhancing security, this device sets a new standard for efficiency. Elevate your operations with a UHF reader that outshines the competition.

Compact and Portable: Redefining Mobility

Experience the freedom of mobility with the compact and portable design of the UHF Reader Handheld C4050. This device is engineered for convenience, allowing you to carry the power of UHF RFID technology wherever your business takes you. Its lightweight build doesn’t compromise on performance, making it the ideal solution for on-the-go professionals seeking unparalleled convenience in data capture.

Intuitive User Interface for Effortless Operation

IDTech’s UHF Reader Handheld C4050 combines advanced technology with an intuitive user interface, ensuring effortless operation for users of all levels. With a user-friendly design, even beginners can navigate the device seamlessly. Say goodbye to complex setups and welcome a handheld UHF reader that prioritizes user experience, empowering you to focus on your business, not the technology.

UHF Reader Handheld C4050 | IDTech

ARC GROUPS is a provider and seller of varieties of UHF RFID Handheld Reader & Scanner also known as RFID handheld Scanner which is consistent in high performance, durable, and reliable to read and transmit data. These are also known as portable RFID readers or handheld readers.

ID Tech Solutions is a manufacturer provider, seller, and distributor of a wide range of NFC, Bluetooth, HF, UHF, RFID handheld readers, and fixed RFID readers providing them to clients across all industries and the length and breadth of India.

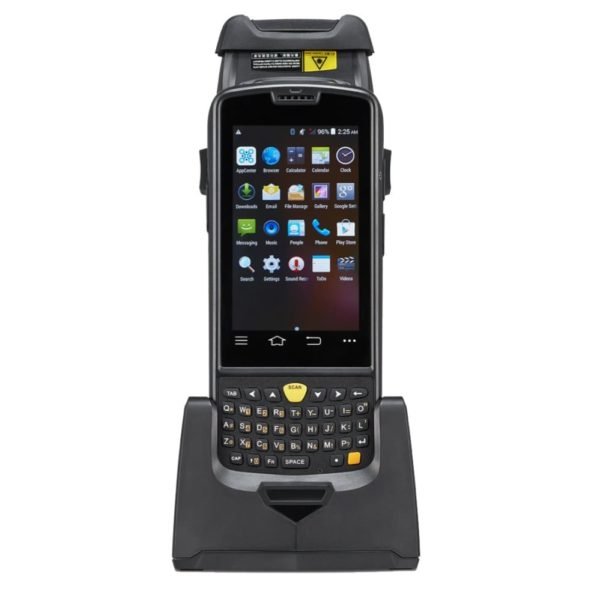

Physical Characteristics of Chainway RFID handheld reader C4050

• Dimensions 176mm x 76mm x 29mm/ 6.93 x 2.99 x 1.14in
• Weight 319g/ 11.25oz
• Display 4” WVGA (480*800), 16.7M colors
• Touch Panel Rugged capacitive touch panel
• Power Main battery: Li-ion, 3200mAh Pistol battery: Li-ion, 5200mAh (optional)
• Expansion Slot 1 PSAM, 1 SIM, 1 MicroSD(TF) slot
• Interfaces USB Micro-B
• Audio 0.5W speaker, built-in microphone
• Keypad Numeric / Qwerty
• Sensors Light sensor, proximity sensor

Performance of Chainway RFID handheld reader C4050

• Option 1 – CPU: Qualcomm 1.3 GHz quad-core RAM+ROM: 2GB+16GB
• Option 2 – CPU: Qualcomm 1 GHz quad-core RAM+ROM: 1GB+8GB
• (Expansion Supports up to 128 GB Micro SD card)

Developing Environment for Chainway RFID handheld reader C4050

• Operating System Android 5.1
• SDK Chainway Software
• Development Kit Language Java
• Tool Eclipse / Android Studio User Environment
• Operating Temp. -4oF to 122oF / -20oC to 50oC
• Storage Temp. -40oF to 158oF / -40oC to 70oC
• Humidity 5%RH – 95%RH non-condensing
• Drop Specification Multiple 1.2m/3.9ft drops to concrete across the operating temperature range
• Tumble Specification 1000 x 0.5m/1.64ft falls at room temperature
• Sealing IP64 per IEC sealing specifications ESD ±15KV air discharge, ±8KV conductive discharge

Communication

• WLAN IEEE802.11 a/b/g/n
• WWAN(Europe)
• 2G: GPRS(900/1800MHz) 3G: WCDMA B1, B8 4G: FDD-LTE: B1, B3, B7, B8, B20
• WWAN(America)
• 2G: GPRS(850/1900MHz) 3G: WCDMA B1, B2, B5 4G: FDD-LTE: B2, B4, B7, B17
• WWAN (China)
• 2G: GPRS(850/900/1800MHz)
• 3G: WCDMA: B1       CDMA EVDD: EVDD Rev.A800MHz       TD-SCDMA: B34, B39
• 4G: TDD-LTE: B38, B39, B40, B41       FDD-LTE: B1, B3
• Bluetooth: Bluetooth 4.0
• GNSS: GPS, AGPS
• InfraRed: (Optional)
• Wavelength: 940nm
• Frequency: 38kHz
• Range: > 4m
• Protocol: DLT_645-2007

Barcode Scanning (Optional)

• 1D Scan Engine Honeywell N4313/ Zebra SE965
• Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
• 2D Scan Engine Zebra SE4500
• Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch, Postal (KIX), etc.

RFID (Optional)

• LF
• Frequency 125kHz, 134kHz (FDX-B / HDX)
• Protocol ISO11784/5, ISO18000-2
• Chips R/O ID card, e.g. EM4100/4200, TK4100 R/W ID card, e.g. EM4305/HITAG S Animal tags Others for customization
• Range 3-8cm

LF (with external antenna)

• Frequency 134kHz (FDX-B+HDX)
• Protocol ISO11784/5
• Chips Animal tags Others for customization
• Range 3-12cm, external antenna 3-20cm, with a 75cm extension antenna

HF

• Frequency 13.56MHz
• Protocol ISO14443A/B, ISO15693
• Chips M1 card (S50/S70), M0 (Ultralight), M3 (Desfire D40/D41/D81), CPU_A card CPU_B card ICODE II, TI2048, LRI64K Others for customization
• Range 3-8cm
