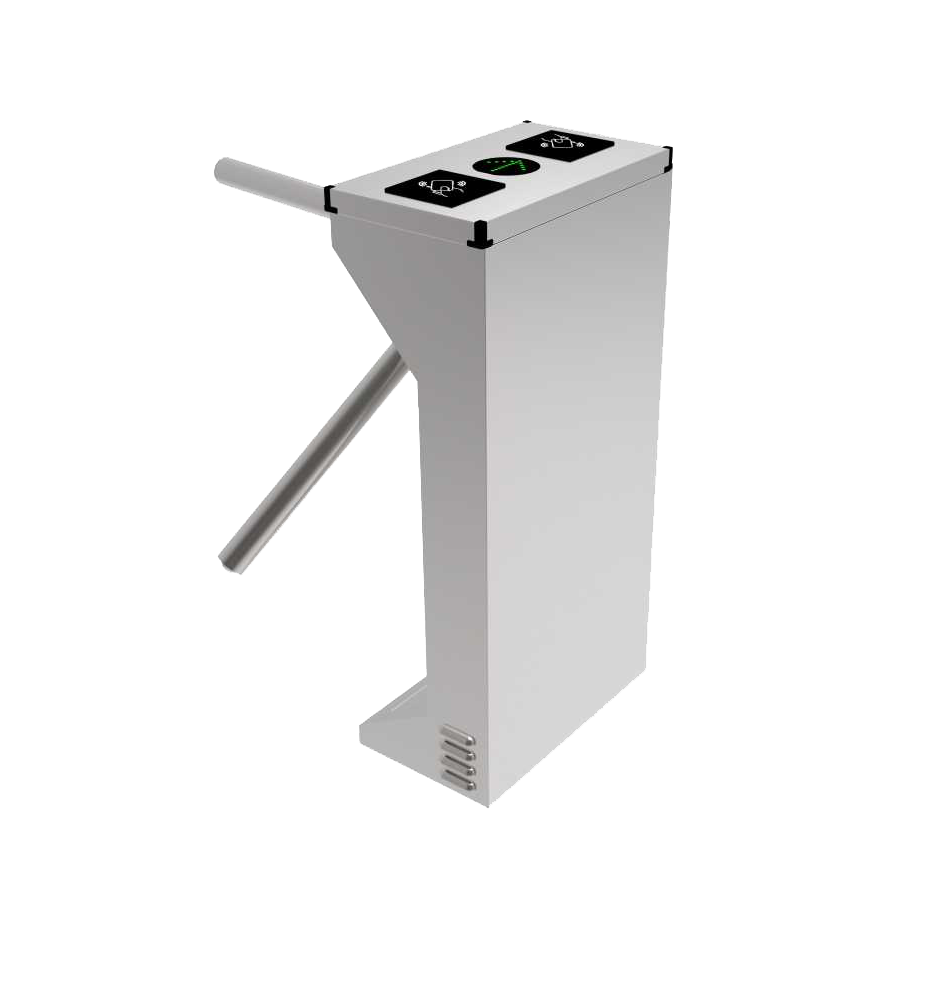

Tripod Turnstile Gate | TW-T1000 Access Control System | Timewatch
Tripod Turnstile Gate TW-T1000 models are space-efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system.
Tripod Turnstile Gate can be mounted with a display, passage counter, card reader, token operation traffic lights, command console, and alarm system against unauthorized entries.
The unique dropping arm feature provides a fail safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations.
Durability with minimal maintenance means years and millions of trouble-free passages. The Tripod Turnstile Gate creates a secure environment in. for example, a reception area.
Our Tripod Turnstile Gate is used in different applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection, and lobby access control.
Tripod Turnstile Gate TW-T1000 Description:
| IN GENERAL | • Semi-auto mode: After reading the card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in the home position. • Full-auto mode: The passenger pushes the arm at a little strength after reading the card, and the arm will automatically rotate forward by motor power until the arm arrives in the home position. • Pure mechanical mode： The passenger pushes the arm by hand until he goes through the barriers. • Single or bi-directional function in mechanical and electrical versions. • Automatic reset of barrier arms after each passage. • Cable or wireless remote control panel key override control for emergencies. Automatically arm drops down when power is off or emergency. • Adjustable time-out delay. |
|---|---|
| OPERATING MODES | • Single passage in the set direction • Bi-directional single passage • Free passage in the set direction • Always free or locked |
| MATERIALS | • Housing: Made in metal sheet and painted with 20/IO or in stainless steel AISI 304 o AISI316. • Barrier swings-Plastic plate, toughened glass, stainless steel frame. • Lid(optional)–stainless steel or artificial stone(black/brown) |
| COLOURS&FINISHES | • High-quality powder coating plus lacquered finish • Dark grey color with high-quality powder coating plus lacquered finish • Sandpaper powder coating with pearl mica effect |
| Manufacturer | TIME WATCH |
Product Description:
- Dimension: 480*280*960mm
- Unlock Time: 0.2s
- Pass Rate: 35Person/min
- Input: 100V~240V
- Motor Voltage: 24v
- Environment: -25~+70
- Protection Level: IP45
