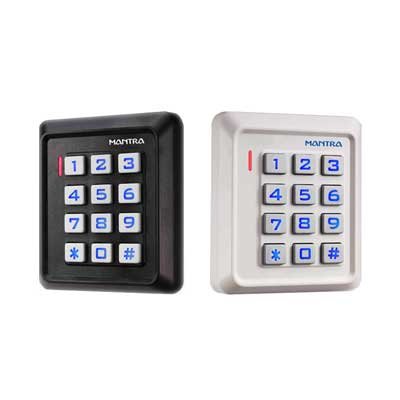

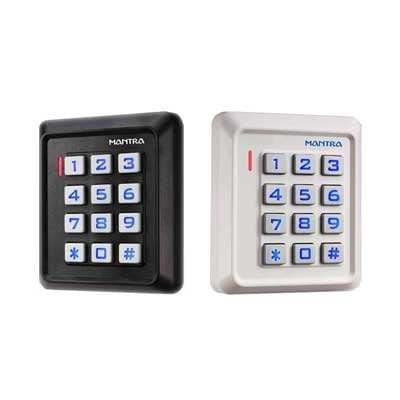

Standalone Keypad Access Control SEM 02 | Mantra
This Standalone Keypad Access Control LF RFID Reader is a contactless reader device that supports 125 kHz LF cards. Standalone Keypad Access Control comes with access control support.
- Indoor use
- Backlight keys
- Built-in buzzer
- Can connect external reader
- Easy to install and program
- Full programming from the keypad
- Very low power consumption (30mA)
- Can be used as a standalone keypad
- Lock output current short circuit protection
- Wiegand 26 output for connecting to a controller
- 2000 uses, supports Card, PIN, Card + PIN
- Fast operating speed, < 20ms with 2000 users
- Wiegand 26 input for connecting with a reader
- Adjustable Door Output time, Alarm time, Door Open time
- Built-in light-dependent resistor (LDR) for anti-tamper
Product Specifications of Standalone Keypad Access Control:
| Battery | NA |
|---|---|
| Body | Plastic |
| Dimension | 92*81*20 mm |
Functionality
| ID Card Capacity | 2000 |
|---|---|
| Record Capacity | NA |
| Card Type | Proximity card |
| Identify mode | Card, Password |
| LED Indicator | 2 LED Status (Green, Red) |
| Keypad Type | Numeric |
| Wiegand/RS485 Interface | Wiegand Input & Output 26/34 bit |
Technical Specification
| Communication | NA |
|---|---|
| Operation Humidity | 10% ~ 80% |
| Operation Temperature | 10° C ~ 60° C |
| Power | DC 12V 3A |
Accessories
| Wiring Connections | External Card Reader, Electric Lock, Exit Button |
|---|
