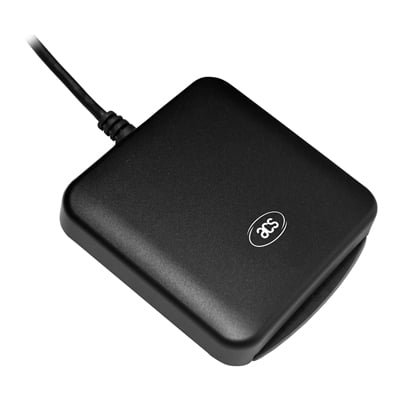

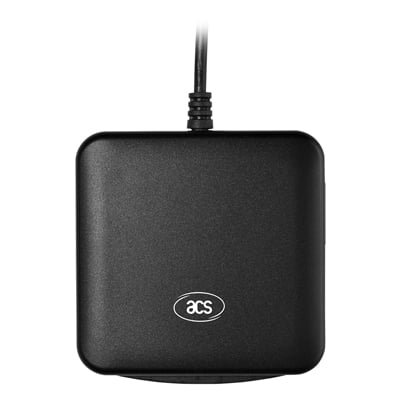

Smart Card Reader ACR39 | Mantra
Smart Card Reader ACR39 designed and developed by Mantra ushers new and modern technology into the world of smart card readers. This compact smart card reader brings together sophisticated technology and modern design to meet the rigorous requirements of smart card-based applications.
It also features a USB Full Speed interface and a smart card read/write speed of up to 600 Kbps. Highly durable, ACR39U can last for 100,000 card insertion cycles. ACR39U also has various certifications, such as EMV 2000 Level 1 and PBOC, making it the ideal smart card reader for your e-Banking and e-Payment application needs
It is fully compliant with PC/SC and CCID specifications and supports various operating systems such as Windows, Linux, and Mac. Additionally, ACR39U may be used on mobile devices running on the Android™ platform versions 3.1 and above.
Smart Card Reader | ACR39 | Mantra Product Features:
- Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
- Supports microprocessor cards with T=0 or T=1 protocol
- Cards following the I2C bus protocol (free memory cards) with a maximum 128 bytes page with capability, including Atmel®: AT24C01/02/04/08/16/32/64/128/256/512/1024
- SGS-Thomson: ST14C02C, ST14C04C
- Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
- Cards with intelligent 1k bytes EEPROM with write-protect function, including Infineon®: SLE4418, SLE4428, SLE5518, and SLE5528
- Cards with intelligent 256 bytes EEPROM with write-protect function, including Infineon®: SLE4432, SLE4442, SLE5532, and SLE5542
- Supports PPS (Protocol and Parameters Selection)
- Supports PPS (Protocol and Parameters Selection)
- Features Short Circuit Protection
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
Smart Card Reader | ACR39 | Mantra Product Specification:
| Weight (g) | 60.0 g |
|---|---|
| Dimensions (mm) | 72.2 mm (L) x 69.0 mm (W) x 14.5 mm (H) |
| Power Source | From USB port |
|---|---|
| Protocol | USB CCID |
| Speed | USB Full Speed (12 Mbps) |
| Connector Type | Standard Type A |
| Cable Length | 1.5 m, Fixed |
| Others | CAC, PIV, SIPRNET, J-LIS Smart Cards |
|---|---|
| Protocol | T=0; T=1; Memory Card Support |
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
| Certifications/Compliance | EN 60950/IEC 60950 ISO 7816 USB Full Speed PC/SC CCID EMV Level 1 (Contact) J-LIS (Japan) PBO TAA (US) VCCI (Japan) Microsoft® WHQL CE FCC WEEK RoHS 2 REACH |
|---|
| Device Driver Operating System Support | Windows® Linux® MAC OS® Solaris Android™ |
|---|
