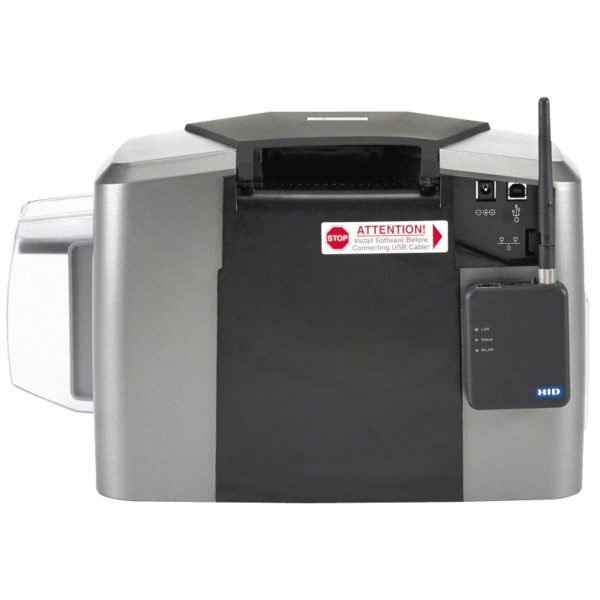

PVC Plastic Card Printer FARGO – DTC 1250e | IDTech
We offer a wide variety of Plastic card printers from single-side printing to dual-side edge-to-edge printing options out of which the PVC Plastic Card Printer FARGO – DTC 1250e has End-to-End Control.
Flexibility and Security – The optional iCLASS SE® encoder of PVC Plastic Card Printer FARGO – DTC 1250e | IDTech (part of the iCLASS SE open encoder platform) can be fully integrated into your printer, allowing you to create, encode (read/write), and manage your secure credentials from start to finish.
PVC Plastic Card Printer FARGO – DTC 1250e can design personalized ID badges locally and then program them to work with your current physical access control system (PACS), streamlining your ordering, inventory management, and issuance processes.
The PVC Plastic Card Printer FARGO – DTC 1250e is one the best and leading printers of all types of commercial and industrial printing on Plastic or PVC white cards.
Using the included Swift ID® badging software, you can design custom ID cards on the spot, and the PVC Plastic Card Printer FARGO – DTC 1250e Workbench™ diagnostic utility software can help you easily maintain your card printer over time.
The PVC Plastic Card Printer FARGO – DTC 1250e direct-to-card printer and encoder also feature an intuitive, user-focused SmartScreen™ graphical display, enabling efficient set-up, operation, and maintenance of your technology investment.
Specifications of PVC Plastic Card Printer FARGO – DTC 1250e:
| PVC Plastic Card Printer Fargo Printer DTC 1250e | |
| Print Method | Dye-sublimation / resin thermal transfer |
| Resolution | 300 dpi (11.8 dots/mm) continuous tone |
| Colors | Up to 16.7 million / 256 shades per pixel |
| Print Ribbon Options | Options include easy-to-use ribbon with disposable ribbon cartridge (EZ) and more economical and eco-friendly refill ribbon for the cartridge (ECO). Both EZ and ECO: Full-colour with resin black and overlay panel, YMCKO*, 250 prints Resin black (standard), 1000 prints ECO only: Full-colour half-panel with resin black and overlay panel, YMCKO*, 350 prints EZ only: Full-color with two resin black panels and overlay panel, YMCKOK*, 200 prints Resin black and overlay panel, KO*, 500 prints Resin black (premium), 1000 prints Dye-sublimation black and overlay panel, BO*, 500 prints Resin green, blue, red, white, silver, gold, 1000 prints Silver and gold metallic, 500 prints Rewrite technology – no ribbon is required |
| Print Speed** | 6 seconds per card (K*); 8 seconds per card (KO*); 16 seconds per card (YMCKO*); 24 seconds per card (YMCKOK*) |
| Accepted Standard Card Sizes | CR-80 (3.375″L x 2.125″W / 85.6 mm L x 54 mm W); CR-79 adhesive back (3.313″L x 2.063″W / 84.1 mm L x 52.4 mm W) |
| Print Area | CR-80 edge-to-edge (3.36″L x 2.11″W / 85.3 mm L x 53.7 mm W); CR-79 (3.3″L x 2.04″W / 83.8 mm L x 51.8 mm W) |
| Accepted Card Thickness | .009″ – .040″ / 9 mil – 40 mil / .229 mm – 1.016 mm |
| Accepted Card Types | PVC or polyester cards with polished PVC finish; monochrome resin required for100% polyester cards; optical memory cards with PVC finish; rewrite |
| Input Hopper Card Capacity | 100 cards (.030″ / .762 mm) |
| Output Hopper Card Capacity | Single-sided: Up to 30 cards. Dual-Sided: Up to 100 cards. (.030″ / .762 mm) |
| Card Cleaning | Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change |
| Memory | 32 MB RAM |
| Software Drivers | Windows® XP / Vista™ (32-bit & 64-bit) / Server 2003 & 2008 / Windows® 7 / Windows® 8 (32-bit & 64-bit)/ MAC OS X 10.5/10.6/10.7/10.8/10.9/ Linux*** (Available Soon) |
| Interface | USB 2.0, optional Ethernet with the internal print server |
| Operating Temperature | 65° to 80° F / 18° to 27° C |
| Humidity | 20–80% non-condensing |
| Dimensions | Single-sided printer: 8.8″H x 13.7″W x 7.9″D / 224 mm H x 348 mm W x 201 mm D. Dual-sided printer: 9.8″H x 18.7″W x 9.2″D / 249 mm H x 475 mm W x 234 mm D. |
| Weight | Single-sided: 7.5 lbs / 3.4 Kg; dual-sided: 10 lbs / 4.54 Kg |
| Agency Listings | Safety: UL 60950-2, CSA C22.2 (60950-07), and CE; EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC |
| Environmental Features | GreenCircle Certified card printer (base models only without encoders) and refillable supply cartridges (ECO) |
| Supply Voltage | 100-240Vac, 50-60Hz, 1.6 Amps max |
| Supply Frequency | 50 Hz / 60 Hz |
| Warranty | Printer – three years; printhead – three years, unlimited pass with UltraCard® |
| Encoding Options | Supported smart card and magnetic stripe technologies: 125 kHz (HID Prox) reader; 13.56 MHz (iCLASS® Standard / SE / SR / Seos, MIFARE Classic®, MIFARE Plus®, MIFARE DESFire®, MIFARE DESFire® EV1, ISO 14443 A/B, ISO 15693) read/write encoder; contact smart card encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards; ISO magnetic stripe encoding, dual high- and low-coercivity, tracks 1, 2 and 3 |
| Supported Access Control Credential Programming | iCLASS® Standard/SE/SR/Seos, MIFARE Classic™, MIFARE DESFire® EV1, HID Prox |
| Options | Single-wire Ethernet and USB 2.0 interface for inline printing and encoding (note: single-wire Ethernet encoding is only available for iCLASS®, MIFARE®, and contact smart card encoding) – Ethernet-enabled printer supports wireless accessory; dual-sided printing module; smart card encoding modules (contact/contactless); magnetic stripe encoding module; printer cleaning kit; Ethernet with internal print server; secure proprietary consumables system |
| Software | Swift ID™ embedded badging application, FARGO Workbench™ diagnostic utility with Color Assist™ spot-colour matching |
| Display | Colour-changing status buttons |
