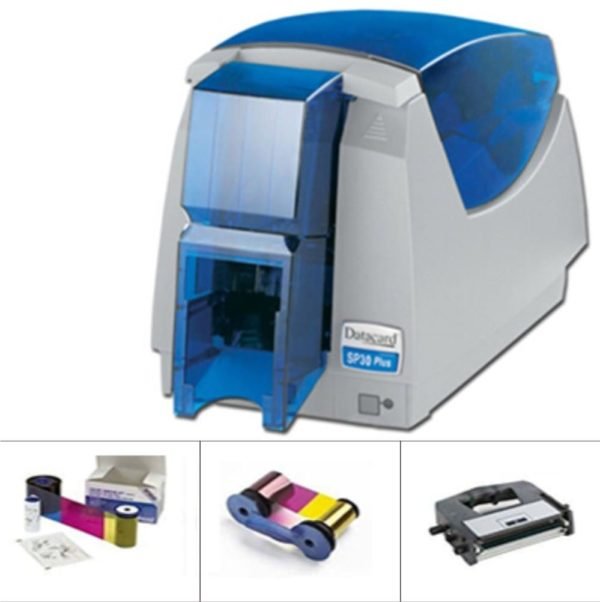

PVC ID Card Printer SP30 | Datacard

PVC ID Card Printer SP30 | Datacard

Out of the wide range of PVC ID Card Printer, and card printers provided by us, the PVC ID Card Printer, Datacard SP30 Printer is one of its types that offers an economical printing solution along with its compact design, fast, easy-to-install, and start operations.

• Increase productivity and manage costs.
• Produce professional high-quality cards.
• Issue driver’s licenses, national healthcare cards, corporate ID cards, government ID cards, and more.

PVC ID Card Printer has been launched by the Ministry of Labour and Employment, Government of India to provide health insurance coverage for Below Poverty Line (BPL) families.

The objective of RSBY is to protect BPL households from financial liabilities arising out of health issues that involve hospitalization. It is for the first time, that IT applications are being used for social sector schemes on such a large scale.

Every beneficiary family has been issued a biometric-enabled smart card containing their fingerprints and photographs. All the hospitals implemented under RSBY are IT-enabled and connected to the server at the district level.

Since the PVC ID Card Printer launched, some 34M active smart cards have been issued and the PVC ID Card Printer Datacard SP30 Plus was designed to meet this RSBY requirement.

We are the prominent manufacturer, supplier, and provider of all types of Plastic Cards and Smart Cards based in India, Gurgaon (Delhi-NCR) has the widest range of Plastic PVC ID Card Printers for single-side and dual-sided printing and other types of printing, offers almost all types of cards printing solutions for different industries in India.

Standard Features of Datacard SP30 PVC ID Card Printer

Print Capabilities

• One-sided edge-to-edge printing
• Continuous-tone, full-color, black-and-white photos
• Alphanumeric text, logos, and digitized signatures
• Variety of bar codes

Background Patterns

• Advanced Imaging Technology™ Print speed
• Full-color printing: Up to 160 cards per hour
• One-colour printing: Up to 750 cards per hour

The capacity of the Datacard SP30 Printer

• Input hopper: Up to 100 cards, 0.03 in. (0.76mm)
• Output hopper: Up to 20 cards, 0.03 in. (0.76mm)
• Operating system support for printer driver:
• Microsoft® Windows 8+ (32-bit)
• Windows 7 (32-bit)
• Windows XP (32-bit)
• Windows Server 2003 (32-bit)

Printer Driver

• User-adjustable image and color controls
• Stand-alone driver diagnostics
• Color image and test card preview
• Add text, image, or pattern to topcoat
• Supply usage tab
• User-friendly operation
• An audible and visual message prompts
• Automatic card feed
• Operator-replaceable printhead
• Continuous cleaning roller
• Easy-access components including quick-change ribbon cartridges
• A highly accessible card path
• Automatic identification and validation for ribbons
• Automatic printer settings, low ribbon warning, ribbon saver

Options For Datacard SP30 Printer

• Magnetic stripe encoding
• ISO: IAT or NTT
• Dual high- and low-coercivity
• Tracks 1, 2, and 3 (1 track for NTT)
• Smart card personalization
• Contact/contactless all-in-one reader
• Contact station
• Clear card personalization
• Input hopper empty alert
• Soft-sided carrying case

Specifications For Datacard SP30 Printer

• Physical dimensions L 16.5 in. x W 7.8 in. x H 9.0 in. (41.25 cm x 19.5 cm x 22.5 cm)
• Weight 8 to 9 lbs (3.6 kg to 4.1 kg) depending on options
• Print resolution 300 dots per inch, 256 shades

Electrical requirements

• 100/120V, 50/60 Hz
• 220/240V, 50/60 Hz
• Plastic cards accepted
• ISO ID-1/CR-80 size cards
• 3.370 in. x 2.125 in. (85.6 mm x 53.98 mm)

Card Options For Datacard SP30 Printer

• PVC with glossy laminate surface
• Clear cards
• Other core materials with PVC overlaminates are optional
• Card thicknesses accepted 0.009 in. to 0.055 in. (0.2286 mm to 1.397 mm)
• Operating environment 60°F to 95°F (15°C to 35°C) 20% to 80% non-condensing humidity
• Storage environment 5°F to 140°F (-15°C to 60°C) 10% to 90% humidity
• Agency approvals FCC, CCC, RoHS, CE, UL, cUL

Datacard® Certified Supplies

• Color panel print ribbons YMCKT full-colour print ribbon with inline topcoat,
• 500 images (Sold in case of 16) ymcKT short panel color print ribbon with inline topcoat, 650 images (Sold in case of 16)

Cleaning Supplies

• Isopropanol cleaning cards (10/pack)
• Adhesive cleaning sleeves (5/pack)
• Isopropanol cleaning pen Replacement printheads
• Colorprinthead Monochrome printhead

Accessories

• Ribbon cartridge assembly (ribbon not included)
• StickiCard™ adhesive-backed plastic cards (100/pack)
• Carrying case
