Seamless Connectivity: UHF RFID Handheld Reader C3000 by IDTech

Elevate your business with the UHF RFID Handheld Reader C3000 by IDTech. Experience enhanced efficiency, compact mobility, and a user-friendly interface. Revolutionize your data capture capabilities now.

Enhanced Efficiency with UHF RFID Technology

Unlock the potential of seamless data capture with the UHF RFID Handheld Reader C3000 by IDTech. This cutting-edge device is equipped with UHF RFID Handheld Reader technology, providing enhanced efficiency in inventory management, asset tracking, and data collection. Experience swift and accurate information retrieval, empowering your business with a handheld reader that goes beyond expectations.

Compact Design for On-the-Go Professionals

IDTech’s UHF RFID Handheld Reader C3000 redefines on-the-go efficiency with its compact and portable design. Whether you’re in a warehouse, at an event, or in the field, this device ensures easy mobility without compromising performance. Elevate your workflow with a handheld reader that fits in the palm of your hand, delivering UHF RFID Handheld Reader capabilities wherever your business takes you.

User-Friendly Interface for Effortless Operation

Navigate advanced technology effortlessly with the UHF RFID Handheld Reader C3000’s user-friendly interface. Designed for users of all levels, this device simplifies operation, making RFID data capture accessible to everyone. Say goodbye to complexity and welcome a handheld reader that prioritizes user experience, ensuring that you can focus on your business, not the technology.

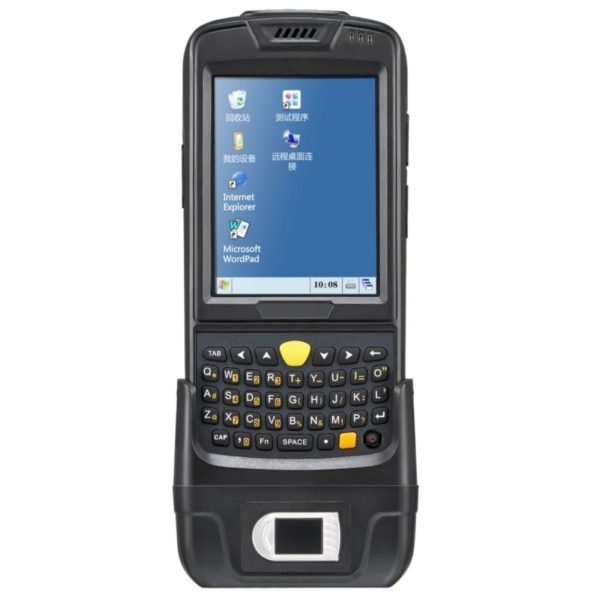

Portable HF / UHF RFID Handheld Reader C3000

Physical Characteristics of Chainway Rfid Handheld Reader c3000

• Dimensions 192mm x 87mm x 151mm/ 7.56 x 3.43 x 5.94in
• Weight 743g/ 26.21oz
• Display 3.5’’ QVGA (240*320), 6.5M colours
• Touch Panel Rugged resistive touch panel
• Power Main battery: Li-ion, 3200mAh Pistol battery: Li-ion, 5200mAh
• Expansion Slot 1 MicroSD(TF) slot
• Interfaces MicroUSB(OTG)
• Audio 0.5W speaker
• Keypad Numeric / Qwerty

Performance of Chainway Rfid Handheld Reader c3000

• CPU Cortex-A8  800MHz
• RAM+ROM 256MB+4GB
• Expansion Supports up to 32GB Micro SD card

Developing Environment for Chainway Rfid Handheld Reader c3000

• Operating System Windows Embedded CE 6.0
• SDK Chainway Software Development Kit
• Language C++, C#, VB.NET
• Tool Visual Studio 2005/2008

User Environment for Chainway Rfid Handheld Reader c3000

• Operating Temp. -4oF to 122oF / -20oC to 50oC
• Storage Temp. -40oF to 158oF / -40oC to 70oC
• Humidity 5%RH – 95%RH non-condensing
• Drop Specification
• Multiple 1.5m drops to concrete across the operating temperature range
• Tumble Specification 1000 x 0.5m/1.64ft falls at room temperature
• Sealing Host IP65 per IEC sealing specifications

Communication

• WLAN IEEE802.11 a/b/g/n
• Bluetooth Bluetooth 2.0+EDR

Barcode Scanning (Optional)

• 1D Linear Scanner 1D Laser / CCD Honeywell N4313/ Zebra SE965
• Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
• 2D Imager Scanner 2D CMOS Laser Scanner Zebra SE4500
• Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

RFID UHF

• Engine CM-1 module based on Impinj Indy R2000
• Frequency 865MHz-868MHz / 920-925MHz / 902-928MHz
• Protocol EPC C1 GEN2 / ISO18000-6C
• Antenna Linear polarization (1.8dBi); circular polarization (4dBi)
• Power 1W (30dBm, +5dBm to +30dBm adjustable)
• R/W range >4.5m (linear polarization); >8m (circular polarization)
• Reading rate >200 tags/s (circular polarization)
• * Range and rate depend on tags and environment
• Fingerprint (Optional)
• Functions Fingerprint enrollment, match, storage, etc.
• Sensor TCS1 / TCS2SS (Capacitive)
• Image Size (pixel) TCS1: 256×360; TCS2SS: 208×288
• Sensing Area (mm) TCS1: 12.8×18; TCS2SS: 10.4×14.4
• Resolution (dpi) 508
• Standard TCS1: FIPS, STQC; TCS2SS: ISO

We being manufacturer provider, seller, and distributor of a wide range of NFC, Bluetooth, HF, UHF, RFID handheld readers, and fixed RFID readers provide them for clients across all industries and the length and breadth of India.
