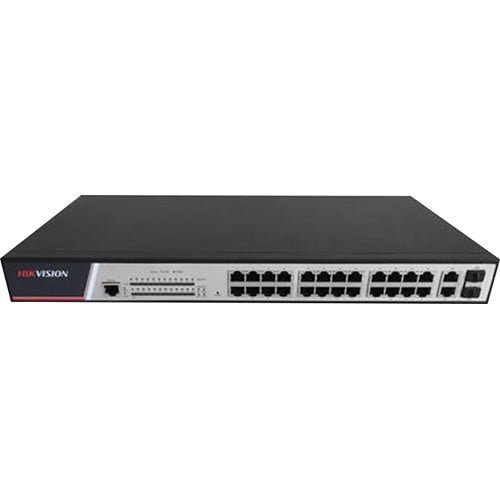

PoE Switch 26-Port DS-3E2326P | Hikvision

PoE Switch 26-Port DS-3E2326P | Hikvision

The PoE Switch 26-Port DS-3E2326P | Hikvision PoE Switch from Hikvision features 24 100Base-T PoE ports and two-gigabit combo ports with a 22.8 Gb/s of switching bandwidth, a 9.6 Mpps forwarding rate, and an 8K MAC address table size.

This switch supports Ethernet-ring protection protocol with a shift time of less than 50 ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation. It supports the IEEE 802.3af/at standard and has a built-in power supply.

PoE proponents believe the technology will eventually become a global long-term DC power wiring standard, replacing a slew of different AC adapters that are difficult to handle centrally. PoE is fundamentally less efficient than AC power, according to critics, due to the lower voltage, which is exacerbated by Ethernet’s tiny conductors.

The Ethernet Alliance, a proponent of PoE, points out that the losses cited are for worst-case situations in terms of cable quality, length, and power consumption by powered devices. The power loss in cabling can be justified in any instance where the central PoE supply substitutes many dedicated AC circuits, transformers, and inverters.

Some additional features:

• Full Managed POE Switch with 24 Fast Ethernet Port
• Layer 2 network switch with 24 x 10/100 Mbps PoE ports and 2 x 10/100/1000 Mbps combo uplink ports for video data transmission.
• Console, Telnet, SSH2.0, Web, SNMP v1/v2/v3, TFTP, RMON IEEE 802.3 AF, and at high PoE power supply.
• Supports STP, VLAN, mirroring, IGMP Snooping, and IGMP v1/v2, L2/L3/L4 ACL, LACP, EAPS, ERPS, Qos, and IGMP v1/v2.
• High surge protection of 4 kV ensures safety and reliability.

The most well-known IP camera brands are Hikvision and Dahua. Hikvision is the global market leader in IP cameras, with a forecasted market share of 17 percent in 2017, followed by Dahua with a forecasted market share of 5.5 percent. Both systems are simple to set up, especially PoE solutions, which are almost plug-and-play.

Product Specifications:

SKU	DS-3E2326P
Manufacturer	Hikvision
of Ports	26 PORT
Data Rate	10/100 Mbps
Management	Managed
Form Factor	Stand Alone
PoE	Yes
Features	ACL, Bandwidth Control, Broadcast Storm, IGMP Snooping, LACP, QoS, SNMP, VLAN
