NFC Smart Card Reader AC122UR-A9 | Mantra

NFC Smart Card Reader AC122UR-A9 | Mantra

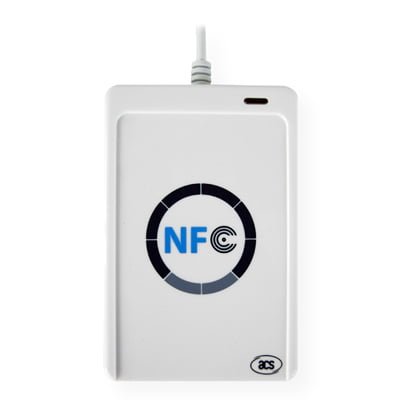

The NFC Smart Card Reader | AC122UR-A9 is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz Contactless (RFID) Technology.

Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only MIFARE® and ISO 14443 A and B cards but also all four types of NFC tags.

NFC Smart Card Reader AC122UR-A9 is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications.

With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, AC122UR-A9 can also read and write more quickly and efficiently. The proximity operating distance of AC122UR-A9 is up to 5 cm, depending on the type of contactless tag in use.

To increase the security level, NFC Smart Card Reader AC122UR-A9 can be integrated with an ISO 7816-3 SAM slot. Furthermore, the NFC Smart Card Reader AC122UR-A9 is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems, and vending machines.

The NFC Smart Card Reader AC122UR-A9 is ideal for both secure personal identity verification and online micro-payment transactions. Other applications of the NFC Smart Card Reader AC122UR-A9 include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection, and network authentication.

The NFC Smart Card Reader AC122UR-A9 comes with an optional stand to hold the smart card reader at an optimal angle so that users can tap contactless cards or NFC-enabled devices onto the AC122UR-A9 with ease. For more information, click here to download the brochure of this special accessory.

The NFC Smart Card Reader AC122UR-A9 has been counterfeited by certain law-breaking parties. We issue the following declaration to inform our stakeholders of how we are addressing this issue, and to inform customers on how they can protect themselves against illegal products. For more information, please click here.

• Smart Card Reader: Read/write speed up to 424 kbps
• Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
• Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
• Built-in anti-collision feature (only 1 tag is accessed at any time)
• Application Programming Interface: Supports PC/SC
• Supports CT-API (through wrapper on top of PC/SC)
• Peripherals: User-controllable bi-color LED
• User-controllable buzzer
• Supports Android™ OS 3.1 and above

Product Application:

• e-Government
• Banking & Payment
• e-Healthcare
• Network Security
• Access Control
• e-Purse & Loyalty
• Transportation

Product Specifications:

Interface	USB Full Speed
Card Connector Type	Contactless Smart Card Reader/Writer

Operating System Support	Windows, Win CE 5.0 and 6.0, Linux, Mac, Solaris, Android 3.1 and above
Operating Distance	Up to 50mm (depending on the tag type)
Operating Frequency	13.56MHz

Smart Card Interface Support	ISO 14443 Type-A & B, Mifare, FeliCa, 4types of NFC(ISO/IEC 18092) tags
Temperature	0° to 60° C
Supply Voltage/aria-current	5V DC/Max 200mA
Dimensions(L*W*H)	98.0*65.0*12.8mm
Compliance/Certifications	ISO18092, ISO14443, PC/SC,CCID,EN60950/ISO60950,CE,FCC,MIC,KC,VCCI, RoHS2 ,WHQL
