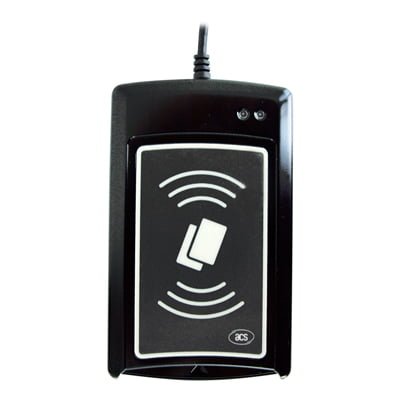

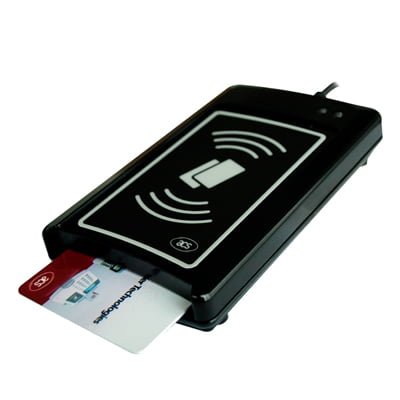

NFC Smart Card ACR1281U-C8 | Mantra
NFC Smart Card | ACR1281U-C8 has been designed, developed, and manufactured by Mantra. The ACR1281U-C8 is the new version of ACS’s ACR120U Contactless NFC Smart Card Reader.
The ACR1281U-C8 USB Protocol defines the interface between the PC and the reader, as well as the communication channel between the PC and the supported contactless cards, including Mifare®, ISO 14443 Type-A, and B compatible cards.
NFC Reader is a PC-linked contactless smart card reader/writer developed based on the 13.56 MHz Contactless (RFID) Technology. By using the High-Level APIs, users can develop applications that involve the use of contactless cards with minimum effort. For example:
- Access control, Identification: Reading the serial numbers of all cards in the field.
- Data Storage: Performing encrypted read and write operations.
- Ticketing: Performing read, write, increment, and decrement operations in an encrypted environment.
- Multi applications: Performing read, write, increment, and decrement operations on various sectors of the card.
NFC Smart Card ACR1281U-C8 | Mantra Product Specifications:
Physical Characteristics
| Weight (g) | 140 g |
|---|---|
| Dimensions (mm) | 120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H) |
USB Interface
| Power Source | From USB port |
|---|---|
| Protocol | USB CCID |
| Speed | USB Full Speed (12 Mbps) |
| Connector Type | Standard Type A |
| Cable Length | 2.0 m, Fixed |
Contact Smart Card Interface
| Protocol | T=0; T=1 |
|---|---|
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V) |
Contactless Smart Card Interface
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL |
|---|---|
| Standard | ISO 14443 A & B Parts 1-4 |
SAM Card Interface
| Protocol | T=0; T=1 |
|---|---|
| Number of Slots | 1 Standard SIM-sized Card Slot |
| Standard | ISO 7816 Class A (5 V) |
Built-in Peripherals
| LED | 2 single-color: Red and Green |
|---|---|
| Buzzer | Monotone |
Other Features
| Firmware Upgrade | Supported |
|---|
Certifications/Compliance
| Certifications/Compliance | ISO 14443 ISO 7816 USB Full Speed PC/SC CCID Microsoft® WHQL CE FCC RoHS 2 REACH |
|---|
Device Driver Operating System Support
| Device Driver Operating System Support | Windows® Linux® MAC OS® Solaris Android™ |
|---|
