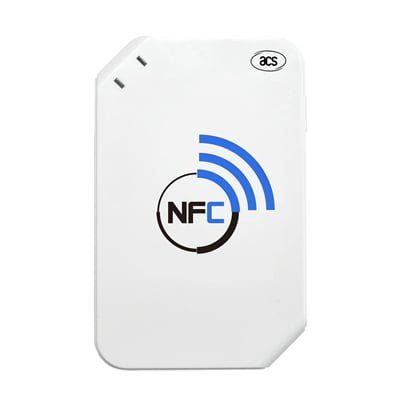

NFC Reader ACR1255U-J1 Secure Bluetooth® | Mantra
NFC Reader ACR1255U-J1 ACS Secure Bluetooth® is designed to facilitate on-the-go smart card and NFC applications. It combines the latest 13.56 MHz contactless technology with Bluetooth® connectivity.
NFC Reader ACR1255U-J1 supports ISO 14443 Type A and B smart cards, MIFARE®, FeliCa®, and most NFC tags and devices compliant with ISO 18092 standards. This makes ACR1255U-J1 ideal for a broad range of solutions, such as hands-free verification for physical and logical access control, and inventory tracking.
NFC Reader ACR1255U-J1 has two interfaces: Bluetooth (also known as Bluetooth Low Energy or BLE) for pairing with mobile devices, and USB Full Speed for PC-linked operation. Additionally, it can read/write at a speed of up to 424 Kbps for contactless smart cards and NFC Reader device access.
With a compact design and a rechargeable Lithium-ion battery for power, NFC Reader ACR1255U-J1 is extremely portable and convenient for use anytime, anywhere with most Bluetooth-enabled smartphones and tablets.
To save valuable cost and time, the firmware of NFC Reader ACR1255U-J1 could conveniently be upgraded on the field. This enables users to cope with the fast-changing technology for their applications and suit different scenarios.
With Bluetooth® technology and AES-128 encryption, NFC Reader ACR1255U-J1 connects securely and wirelessly to any device running on Android™ 4.3 and later, iOS 8.0 and later, Windows® 7 and later, and Mac OS® 10.7 and later.
For PC-linked operation, NFC Reader ACR1255U-J1 could easily be installed for use with any personal computer running on the Windows® operating system because it is PC/SC and CCID-compliant. Its drivers are also compatible with Linux® and Mac OS®.
With its numerous features, the NFC Reader ACR1255U-J1 is the perfect reader for your smart card solution.
Should you wish to try out the demo apps for NFC Reader ACR1255U-J1, please download the app from Google Play and the App Store.
Product Details:
- Bluetooth® Interface
- USB Full Speed Interface
- Power Source: Battery-Powered (incorporates a Lithium-ion battery rechargeable through a USB Mini-B port)
- USB-Powered (through PC-linked mode)
- CCID Compliance
- Smart Card Reader
- Contactless Interface: Read/write speed up to 424 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 60 mm (depending on tag type)
- Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
- Built-in anti-collision feature (only 1 tag is accessed at any time)
- NFC Support
- Card Reader/Writer Mode
- Built-in Peripherals: Two user-controllable bi-color LEDs
- User-controllable buzzer
- Application Programming Interface: Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- USB Firmware Upgradeability
- Supports Android™ 4.3 and later
- Supports iOS 8.0 and later
Product Specification:
| Weight (g) | 37.5 g (74.1 g with cable ± 5 g tolerance) |
|---|---|
| Dimensions (mm) | 85 mm (L) x 54 mm (W) x 10 mm (H) |
| Power Source | Rechargeable Lithium-ion Battery (charging through USB) |
|---|---|
| Protocol | Bluetooth®(Bluetooth 4.0) |
| Speed | 1 Mbps |
| Power Source | From USB Port |
|---|---|
| Protocol | USB CCID |
| Speed | USB Full Speed (12 Mbps) |
| Connector Type | USB Mini-B |
| Cable Length | 1 m, Detachable |
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE Classic Card, T=CL ISO 18092, NFC Tags FeliCa |
|---|---|
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa |
| LED | 2 Bi-colors: Red and Blue, Red and Green |
|---|---|
| Buzzer | Monotone |
| Encryption | In-device AES encryption algorithm |
|---|---|
| Firmware Upgrade | Supported |
| Certifications/Compliance | EN 60950/IEC 60950 ISO 18092 ISO 14443 USB Full Speed Bluetooth® PC/SC CCID VCCI (Japan) TELEC (Japan) CE FCC RoHS 2 REACH Microsoft® WHQL |
|---|
| Device Driver Operating System Support | Windows® Linux® MAC OS® 10.7 and later Android™ 4.3 and later iOS 8.0 and later |
|---|
