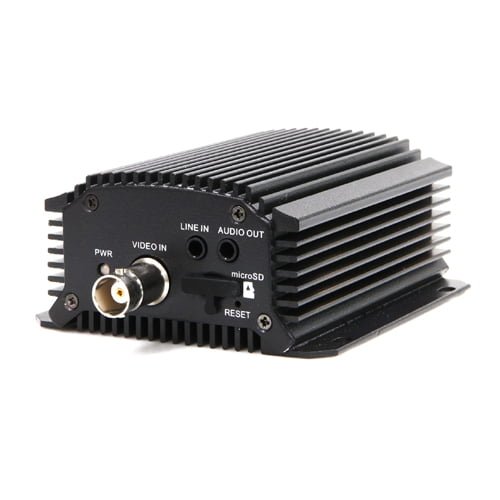

Network Video Encoder 1-channel DS-6701HWI | Hikvision brings your analog cameras into the digital IP-based age with this DS-6701HWI 1-channel Video Encoder from Hikvision which performs real-time H.264, MPEG-4, MPEG-2, or MJPEG compression at resolutions up to WD1/960H 960 x 480 at up to 30 fps.

It features support for single or dual-stream encoding and has two-way audio communication via dedicated 3.5mm input and output jacks.

Also, an RS-485 port enables full PTZ camera control. In addition to all of this, the encoder features 1 alarm input and 1 alarm output, an RJ-45 10/100 Mbps PoE Ethernet port, and support for NAS, iSCSI, and IPSAN storage systems along with a microSD card slot.

Elevate Single-Channel Surveillance

Enhance your surveillance capabilities with the Network Video Encoder 1-channel DS-6701HWI.

This encoder is designed to elevate single-channel surveillance, providing advanced features and functionality for a comprehensive monitoring experience. Ensure precision and efficiency in capturing and analyzing video feeds.

Seamless Integration into Existing Systems

Seamlessly integrate the Network Video Encoder 1-channel DS-6701HWI into your existing surveillance system for enhanced performance.

This network video encoder is optimized for compatibility, ensuring a smooth flow of video data within your infrastructure. Enjoy an efficient setup without compromising on surveillance capabilities.

High-Quality Video Encoding

Experience high-quality video encoding with the Network Video Encoder 1-channel DS-6701HWI, providing clear and detailed footage.

Despite handling a single channel, this encoder ensures that every frame is processed with precision. Benefit from reliable and accurate video encoding for effective monitoring.

Product Specifications:

Make	Hikvision
Manufacturer	Hikvision
Model code	DS-6701HWI
Video Inputs	1 channel
Data Input	Yes
Audio Input	Yes
Alarm Input	Yes
Compression Type	H.264/ JPEG /M-JPEG/MPEG-4
Network Protocols	IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, hkDDNS, NTP, RTSP, RTP/RTCP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SOCKSv4/v5, PSIA, OnVIF, Hik CGI, netfilter
Interface	1 RJ-45 10 M / 100 Mbps adaptive Ethernet interface (PoE)
Image per second (IPS)	30 fps
Control	PTZ
Physical Specifications	Dimensions mm: 80 x 39 x 90 Weight g: <500
Electrical Specifications	Voltage: 12 V DC Power Consumption: <5 W
Environmental Specifications	Operating Temperature oC: -10 ~ +55 C (140 ~ 131) Operating Humidity %: 10 ~ 90
Additional info	Network Video Encoder 1-channel DS-6701HWI features H.264/MPEG4/MPEG2/MJPEG encoding standards, one independent PoE network interface, multiple network protocols, including IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP support and multiple PTZ protocols.
