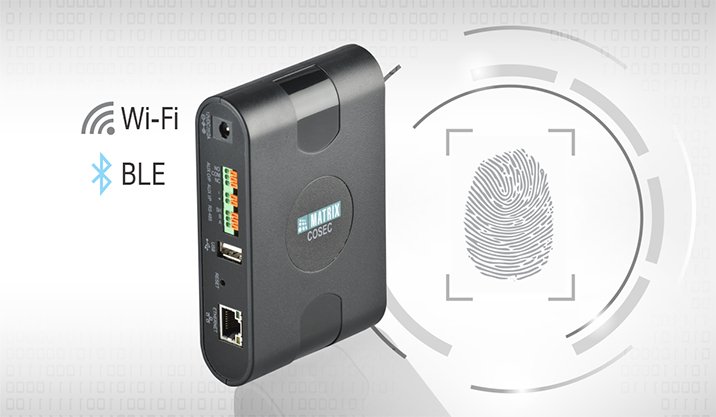

Matrix COSEC PANEL 200P | MATRIX
Matrix COSEC PANEL 200P is an intelligent device used for access control applications. It works in two different architectures. In Network Architecture, COSEC PANEL200P acts as a bridge between the controllers and COSEC. In Standalone Architecture, it works independently without requiring any server. It can manage 255 COSEC door controllers and 25,000 users from its UI.
Key Features:
- Ethernet and RS-485
- USB Port for Wi-Fi, 3G/4G, and Data Transfer
- Auxiliary Input and Output Port
- Advanced Access Control Features
- Events Storage of up to 500,000
Product Specifications:
| SPECIFICATIONS | COSEC PANEL200P |
|---|---|
| CAPACITY | |
| Door Controllers on Ethernet | 255 |
| Door Controllers on RS-485 | 32 |
| Max Users Capacity | 25,000 |
| Events Buffer | 5,00,000 |
| COMMUNICATION | |
| Wi-Fi | Inbuilt Wi-Fi Module (IEEE 802.11 b/g/n) |
| Inbuilt Bluetooth | Yes |
| Ethernet | Yes 10/100 Mbps |
| Rs 485 | Yes |
| USB | One USB Port (for Data Transfer and 2G-3G-4G /Wi-Fi Dongle) |
| SD Card | Yes (8GB) |
| INTERFACE | |
| Aux-In | Yes (4 states-short, open, activated & non-activated) |
| Aux-Out | Form C and SPDT Relay |
| HARDWARE | |
| CPU | Cortex A8 800 MHz |
| Flash Memory | 256 MB |
| RAM Memory | 256 MB (DDR3 SDRAM @ 800Mhz) |
| Operating system | Linux based OS |
| Communication Port | Ethernet & RS-485 |
| Tamper Detection | Yes |
| RTC | Yes |
| AUDIO VISUAL | |
| LED | Tricolor LED (Power, Status, and Alarm) |
| Buzzer | Yes(12V) |
| ENVIRONMENTAL | |
| Operating Temperature | -10°C to + 55°C (14°F to 131°F) |
| Humidity | 5% to 95% RH Non-condensing |
| POWER | |
| Input Power | External Power Adapter 12VDC @ 2A |
| MECHANICAL | |
| Dimensions (L x H x D) | 125.25mm X 81.5mm X 30.5mm (4.93″ x 3.20″ x 1.20″) |
| Weight | 140gm (0.308 Lbs) |
| Encloser material | ABS V0 grade |
| CERTIFICATES | |
| Certificates | FCC, CE, and RoHS |
| COMPATIBILITY | |
| System Integration | API For Software Integration |
| Architecture | 1. Network Architecture – With COSEC CENTRA/VYOM 2. Standalone Architecture |
| OTHER DETAIL | |
| Mounting | Wall Mounting or Table Top |
| Packaging Content | 1. Main unit 2. Adaptor (12VDC, 2A) 3. SD Card (8GB) |
