Matrix COSEC DOOR FMX is a high-performance door controller with multispectral sensor technology. It reads both – the surface and the subsurface of a finger producing a more accurate image even when the finger surface features are difficult to read due to dirt, usage, age, or tough environmental conditions. Powered by a high-speed processor and fingerprint detection algorithm, DOOR FMX is specifically engineered for high-security industries including defense, airports, R&D labs, banks, mining, construction, and heavy manufacturing for their security needs.
Applications of Matrix COSEC Door FMX:
Key Features Matrix COSEC Door FMX:
Superior Design which Enhances the Look of Your Premises
- Well-engineered Product
- 4.3″ Touch-screen Capacitive Display
Better Capacity
- Multispectral Fingerprint Controller with 50,000 Users Capacity
- 500,000 Events Storage Capacity
Select Credential as per Requirement
- Fingerprint, RFID Card, PIN, and Face (with Compatible Hardware)
- Proximity and Smart Cards
- EM Prox, HID Prox, MIFARE® and HID iCLASS
Multiple Connectivity Options
- Wired Options: Ethernet, PoE
- Wireless Options: Wi-Fi, 3G/4G
Convenient Operation and Installation
- User Friendly UI
- Standalone and Network Operation
- Easy Mounting on a Back Plate
- Leverage Existing Network Infrastructure
- Minimum Wiring

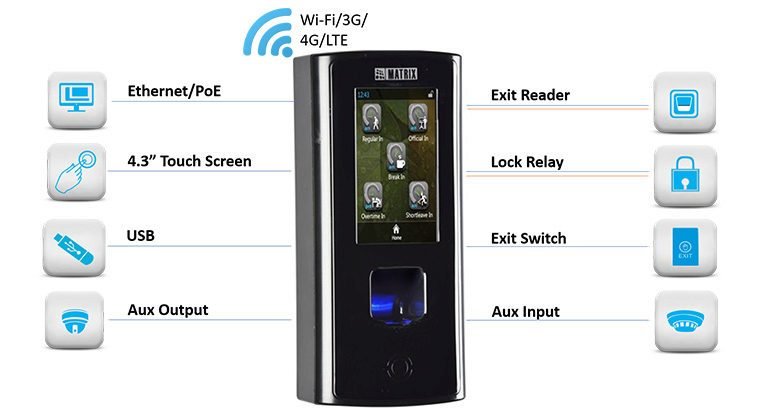

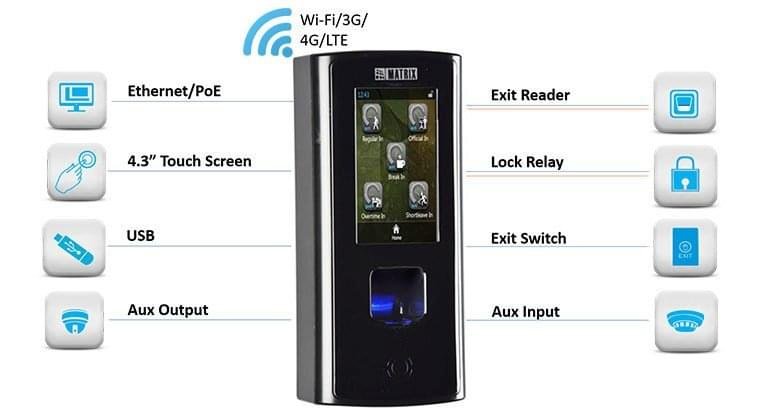

Various Interfaces to Control Various Applications
- Door Relay and Door Sense
- Auxiliary Input and Output Ports
- Exit Reader and Exit Switch
Saves Time by Quick Fingerprint Identification
- Identification in Less than One Second
- 1:1 and 1:N Verification
Perform functions faster from the Device itself
- Patented Lumidigm Biometric Fingerprint Sensor
- User Enrolment from Device
- Perform Attendance Functions
- Fetch the Event Data via USB
Perform Applications using APIs
- Communication with Third Party Software
- Integration using Device API
- Device and User Configuration, Enrolment, Transfer of Commands and Events
Product Specifications Matrix COSEC Door FMX:
| Credential Support | Matrix COSEC Door FMX- Fingerprint, RFID Card, PIN, and Face (with Compatible Hardware) |
| Display | 4.3″ Capacitive Touch Screen |
| User Capacity | 1000 (1:N) and 50,000 (1:1)* |
| Template Capacity | 1000 (1:N) and 100,000 (1:1) |
| Cards Per User | Up to 2 |
| Types of Cards Support | EM Prox, HID Prox, HID iClass, and MIFARE Classic® (COSEC CPM Module Required) |
| Event Buffer | 500,000 |
| Communication | Ethernet, PoE, Wi-Fi and Mobile Broadband (3G/4G) |
| Exit Switch | Yes |
| Door Status Sense | Programmable NO, NC, and Supervised |
| Door Lock Relay | Form C and SPDT Relay (Max 2A@30 VDC) |
| Door Lock Power | 12VDC @ 1A (for Adaptor Supply Mode) 12VDC @ 0.5A (For PoE Supply Mode) |
| Aux-IN | Programmable NO, NC, and Supervised |
| Aux-OUT | Form C and SPDT Relay (Max 2A@30 VDC) |
| Reader Interface types | RS 232 and Wiegand In Only |
| USB | 2 (1 for Data Transfer and 1 for Broadband Dongle) |
| CPU | 800 MHz ARM Cortex A8-based Processor |
| Flash Memory | 256MB Flash |
| RAM Memory | 512 MB DDR3 RAM |
| Micro SD Card | Yes (Inbuilt 4 GB) |
| Input Power | 12VDC @ 2A |
| Battery Backup | No Internal Battery Backup and External through Power Supply Battery Backup (PSBB) |
| Dimensions (WxHxD) | 100mm x 220mm x 56mm (3.9″ x 8.7″ x 2.2″) |
| Weight | 0.6kg (1.32 lbs) |
| Humidity | 5% to 85% RH Non-condensing |
| Operating Temperature | 0°C to + 50°C (32°F to 122°F) |
| System Integration | API for Software Integration |
| Operational Mode | Direct Door with COSEC CENTRA Server |
| Tamper Detection | Yes |
| Sensor Technology | Multispectral Lumidigm Sensor with LFD |
| Sensing Area | 27mm x 30mm x 41mm |
