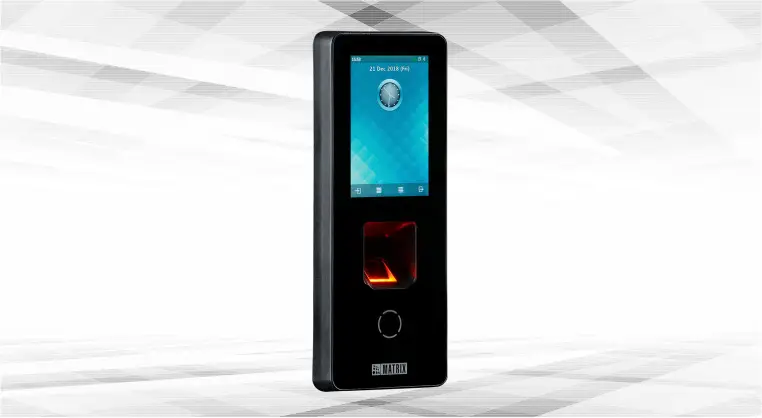

Matrix COSEC ARGO Series | MATRIX
User-Friendly Design and Intuitive Experience
Immerse yourself in a seamless access control journey with the Matrix COSEC ARGO Series. The user-friendly design ensures a hassle-free experience, while the intuitive user interface simplifies navigation. Enjoy the convenience of ultrafast user identification, allowing you to effortlessly manage time attendance, access control, and more. The Gorilla Glass IPS display provides a crystal-clear view, making every interaction smooth and efficient.
Unparalleled Security with Future-Ready Technologies
Matrix COSEC ARGO Series goes beyond conventional access control. Elevate your security standards with built-in Wi-Fi, Bluetooth, and PoE technologies. Benefit from tamper detection and multiple access control interfaces, ensuring a robust defense against unauthorized access. Choose from a variety of credentials, including face recognition, Bluetooth (BLE), and fingerprint options. The product’s future-ready design, incorporating Bluetooth, built-in Wi-Fi, and PoE, ensures your security setup is prepared for the advancements of tomorrow.
High Capacity and Performance
Experience unparalleled performance with the Matrix COSEC ARGO Series. Boasting a high capacity to manage users and events, this system supports up to 50,000 users, and 1:1, and 1:N verification for faster identification. With an impressive 1,00,000 templates and a 5,00,000 events buffer, the ARGO Series ensures seamless operation in various applications. Whether it’s time attendance, cafeteria management, or visitor management, this device excels in delivering swift and secure access.
Applications of Matrix COSEC ARGO Series:
Key Features of Matrix COSEC ARGO Series:
User Friendly Design
- Intuitive User Experience
- Ultrafast User Identification
Gorilla Glass IPS Display
- Impact Resistant
- Scratch Proof
IK06 and IP65 Design
- Vandal Resistant
- Weather Proof
Long Product Life
- IPS Touchscreen LCD
- Better Performance
Higher Capacity to Manage Users and Events
- 1,00,000 Templates
- 5,00,000 Events Buffer
- 50,000 Users
Ultrafast Access and Higher Security
- 1:1 and 1:N Verification
- Faster Identification through Server
- Tamper Detection
Multiple Access Control Interfaces
- Door Relay and Door Sense
- Exit Reader and Exit Switch
Choose Credentials as per Requirement
- Face (with Compatible Hardware), Bluetooth (BLE), and Fingerprint (only in the Fingerprint variant)
- Proximity and Smart Cards
- PIN, RFID Card
Future Ready Technologies
- Bluetooth
- Built-in Wi-Fi
- PoE
- Ethernet
- GSM/VoLTE (Through Dongle)
Deployment Modes
- COSEC CENTRA – On Premise
Product Specifications:
| GENERAL | |
|---|---|
| Credential Support | Bluetooth (BLE), Fingerprint, RFID Card, PIN, Face (with Compatible Hardware) |
| IP Rating | IP65 (With wall mounting installation condition and flush mounting with recommended installation surface) |
| RF Option | Smart Cards – MIFARE Classic® and NFC Tag and HID iCLASS Proximity Cards – EM Prox and HID Prox (Separate variant for each card type. HID PROX requires HID iCLASS type) |
| CAPACITY | |
| Maximum Users | 50,000 |
| Maximum Templates | 25,000 in 1: N Mode and 100,000 in 1:1 Mode (Optical sensing technology) |
| Event Buffer | 500,000 |
| Templates per User | Up to 10 (Single template per finger mode) Up to 5 (Dual template per finger mode) |
| Cards per User | Up to 2 |
| COMMUNICATION | |
| Wi-Fi | Yes (802.11 b/g/n) |
| Bluetooth | Built-in Bluetooth (8m Range – For Mobile Applications) |
| Ethernet | Yes (10/100 Mbps) |
| PoE | Yes (IEEE 802.3 af) |
| RS-232 | Yes |
| Mobile Broadband | Yes |
| Wiegand | Wiegand IN/OUT Available |
| USB | 1 Micro-USB Port (Data transfer and 2G-3G dongle) |
| INTERFACE | |
| Exit Switch Port | Yes |
| Door Status Sense | Programmable NO, NC, Supervised |
| Door Lock Relay | 30V DC @ 2 A, Form C, SPDT Relay |
| Door Lock Power | Internal 12V DC @ Max. 0.5A or External (*External power supply is recommended for >500ma locks supply) |
| Aux-In | No |
| Aux-Out | No |
| Reader Interface Types | RS-232 and Wiegand IN/OUT |
| Micro SD Card | Yes (Inbuilt 8GB) |
| HARDWARE | |
| CPU | 800 MHz ARM Cortex A8-based Processor |
| Memory | 512 MB Flash + 512 MB DDR3 RAM |
| Display | 3.5″ IPS Display with Capacitive Touch Panel with Gorilla Glass |
| Display Resolution | 320 x 480 Pixel |
| Buzzer | Yes |
| Operating Temperature | 0°C to +50°C |
| Humidity | 5% to 85% RH Non-Condensing |
| Tamper Detection | Yes |
| Power | 12V DC @ 2A |
| Power to Door Lock | 12V DC @ 0.5A (Power to external Lock from Device) |
| Dimensions (W x H x D) | 74mm x 186mm x 50mm |
| Weight | 0.549Kgs (1.21Lbs) |
| COMPATIBILITY | |
| System Integration | API for Software Integration |
| Operational Modes | Direct Door with COSEC CENTRA Server Panel Door with COSEC PANEL200P |
