Versatile Applications for Comprehensive Access Control
Empower your security infrastructure with Matrix Card Based Door Controllers. Ideal for time attendance, access control, cafeteria management, job processing and costing, visitor management, and contract workers management, these controllers offer a versatile solution for a range of access management needs.
Cutting-Edge Technology and User-Friendly Design
Experience a new standard of access control with the Matrix Card Based Door Controllers. The user-friendly design, coupled with a 3.5″ IPS LCD touchscreen protected by Gorilla Glass, ensures an intuitive and durable interface. The controllers boast ultrafast user identification and impact-resistant, scratch-proof, IK06, and IP65 design for robust and reliable performance.
Future-Ready Connectivity and Deployment Modes
Stay ahead in the world of access control with Matrix’s future-ready technologies. The controllers come equipped with Bluetooth, built-in Wi-Fi, PoE, Ethernet, and GSM/VoLTE options through a dongle, ensuring seamless connectivity. Choose from deployment modes such as Matrix Card Based Door Controllers COSEC CENTRA for on-premise solutions, Matrix Card Based Door Controllers COSEC VYOM for cloud-based access, or as a standalone solution to meet your specific requirements.
Applications of Matrix Card Based Door Controllers | MATRIX
- Time-Attendance
- Access Control
- Cafeteria Management
- Job Processing and Costing
- Visitor Management
- Contract Workers Management
Key Features of Matrix Card Based Door Controllers | MATRIX
User-Friendly Design
- Intuitive User Experience
- Ultrafast User Identification
Gorilla Glass IPS Display
- Impact Resistant
- Scratch Proof
- Vandal Resistant
- Weather Proof
- IPS Touchscreen LCD
- Better Performance
Higher Capacity to Manage Users and Events
- 1,00,000 Templates
- 5,00,000 Events Buffer
- 50,000 Users
Ultrafast Access and Higher Security
- 1:1 and 1:N Verification
- Faster Identification through Server
- Tamper Detection

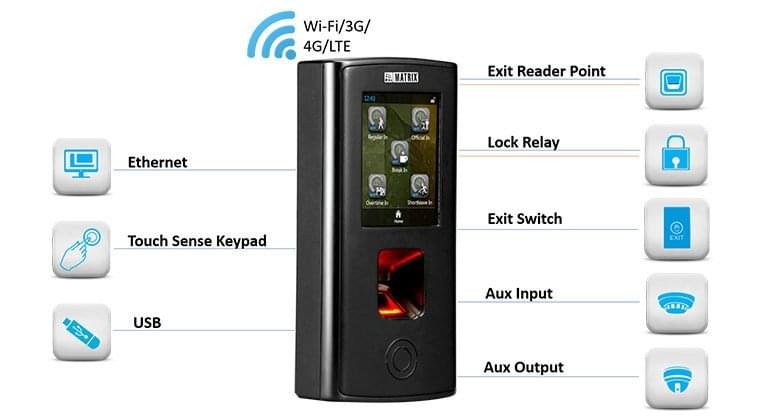

Multiple Access Control Interfaces
- Door Relay and Door Sense
- Exit Reader and Exit Switch
Choose Credentials as per the Requirement
- Face (with Compatible Hardware), Bluetooth (BLE), and Fingerprint (only in the Fingerprint variant)
- Proximity and Smart Cards
- PIN, RFID Card
Future Ready Technologies
- Bluetooth
- Built-in Wi-Fi
- PoE
- Ethernet
- GSM/VoLTE (Through Dongle)
Deployment Modes
- COSEC CENTRA – On Premise
- COSEC VYOM – Cloud-based
- Standalone Solution
Product Specifications:
| Credential Support | |
|---|---|
| PIN | Yes |
| Card | ARGO CAE: EM Prox. ARGO CAM: MIFARE Classic, DESFire EV1 and EV2(Read/Write) ARGO CAI: HID iClass Card Support (Read/Write) HID Prox, EM Prox, Desfire EV1 & EV2 (CSN Read) and Mifare Classic (CSN Read) |
| BLE – Mobile | Yes |
| Capacity | |
| User Profiles | 50,000 |
| Event Logs | 500,000 |
| General Specification | |
| Weight | 550gms (1.12 lbs) |
| Display | 3.5″ IPS LCD (Touch Screen) |
| Display Resolution | 480 x 320 Pixel |
| Gorilla Glass | Yes (Gorilla Glass 3) |
| CPU | 800 MHz ARM cortex A8 based processor |
| RAM | 512 MB DDR3 |
| Flash Memory | 512 MB |
| SD Card | Yes (16 GB) |
| Tamper Detection | Yes |
| Speaker | No |
| Buzzer | Yes |
| Ingress Protection | IP65 |
| Vandal Proof | IK06 |
| Certificate | CE, FCC, BIS, RoHS |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 5% to 95 % RH Non-Condensing |
| Communication | |
| Ethernet | Yes (10/100 Mbps – 1 port) |
| PoE | Yes (IEEE 802.3 af) |
| WiFi | Yes (802.11 b/g/n) |
| 3G/4G/LTE | Yes (Additional USB Modem) |
| BLE | Yes (8m Range) |
| USB | Yes (USB 2.0) Micro USB-Type B |
| Interface | |
| Exit Switch Interface | Yes |
| External Reader Support | Yes (MATRIX and 3rd Party) |
| External Reader | Interface RS232 WiegandPower 12VDC @ 0.5ALED and Buzzer Control Allowed – GREEN LED Buzzer |
| Wiegand | Yes (Selectable IN/OUT) IN: 26 Bit format |
| Door Lock Relay | Yes (30VDC @ 2A, Dry Contacts NO/NC/COM) |
| Door Lock Power | Internal PoE Power: 12VDC @ 0.250 A Internal Adapter Power 12VDC @ 0.5 A External Power 12VDC @ 2A |
| AUX IN / AUX OUT | NO |
| Installation | |
| Wall Mount | Yes |
| Flush Mount | Yes |
| Accessories | |
| Power Adapter | 12VDC @ 2A (CE, FCC, BIS) |
| Mounting Options | Flush Mount: Metal Bracket with Screws Surface Mount: Plastic Back Cover with Screws |
| Battery Backup | No |
