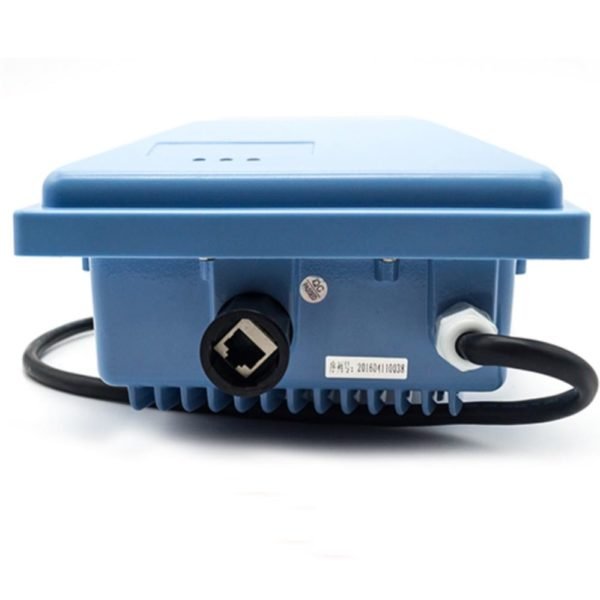

Long Range Active Directional RFID Reader IDT-528 | IDTech
We are the manufacturer, exporter, and provider of a comprehensive range of Long Range Active Directional RFID Reader also known as wall-mounted fixed RFID readers or UHF RFID gate entrance solutions, which can be used for Gates readers at entry and exit of premises, Library readers, USB readers, Long Range readers, and other customized reading of tags.
Long Range Active Directional RFID Reader is used for advanced automation and management systems such as Automatic Time Attendance for Schools, Personnel Tracking in Manufacturing Plants, Library Security, Access Control, Toll plaza automation, parking automation, Hospital Management, Laundry Automation, Event Management, Logistics Management, and other customized automation process and solutions.
The Advantages of using a Long Range Active Directional RFID Reader is it saves a lot of time, for access and identification, they are accurate, is more reliable can be used in demanding environments, and even in crowded areas, there is no need to flash the card.
This Long Range Active Directional RFID Reader has an inbuilt motion detector to allow only persons with a valid RFID tag or card to access the premises. These readers have LF, HF, and UHF frequencies, with a reading distance of up to 10 m depending on the RFID reader and environment.
Functions of Long Range Active Directional RFID Reader:
• Support RS-232, 10/100M Adaptive Ethernet, and customized interfaces.
• External interface and power supply configurable for users’ needs, enhancing the flexibility of systematic integration
• Intelligent antenna technology, with directional identification of tag, and linear coverage of the identification range.
• Multi-group I/O ports: The input interface can detect the TTL or pulse signals of connected devices, used to control the working status of the reader. The output interface can control other devices according to TTL or pulse signals through predetermined conditions
• Support active reading, passive identifying, command trigger, timing trigger, external trigger, and other modes, to meet users’ various integration needs
• Support multi-reading, Multi-reader operating under intensive environment
• Reading distance is auto-regulation or adjustable
• Strong API port
• PVC plastic shell, high-tension, IP Rating IP67
Applications of Active Directional RFID Reader:
• School & Family Communication System
• Corporation Personnel Management
• Automatic Vehicle Identification
• Parking management, Highway Toll Collection
• Warehousing and logistics
• Flash memory (optional)
Product Specifications:
| RF Parameters | |
| Operating Frequency | 2.4-2.48GHz |
| Sensitivity | -95dBm |
| Communication Interfaces | RS-232, 10/100M Adaptive Ethernet |
| Optional Interfaces | RS-485, Wiegand 26/34 |
| I/O Port | 2- channel relays output(optional), 2- channel trigger input(optional) |
| Firmware Upgrade | Upgrade through Serial Port |
| Application Software Platform | Provide development kit of API(C++ and C#) |
| Tag operation | |
| Tag Protocol | Private Protocol |
| Tag Operating Mode | Compatible with active and passive operating mode tags |
| Reading Range | 0-260m (depending on the tag power output) |
| Identification Speed | 200pcs/s (tag ID) |
| Anti-confliction | Identifying 300pcs tag at the same time |
| Mechanical & Electrical performance | |
| Indicator | Buzzer |
| Product Dimensions | 315mm×200mm×110mm |
| Package Dimensions | 380mm×245mm×135mm |
| Net Weight | 1.7kg |
| Gross Weight | 2.5kg |
| Power Supply | DC5V input |
| Power Consumption | 300mW |
| Operating Temperature | -40ºC~+60ºC |
| Storage Temperature | -60ºC+80ºC |
| Humidity | 5% ~ 95% (non-condensing) |
| IP Rating | IP67 |
| Shock Resistance | 10~500Hz, 100mm/15g, triaxial |
