Fingerprint Biometric Device MDESK7 | Mantra

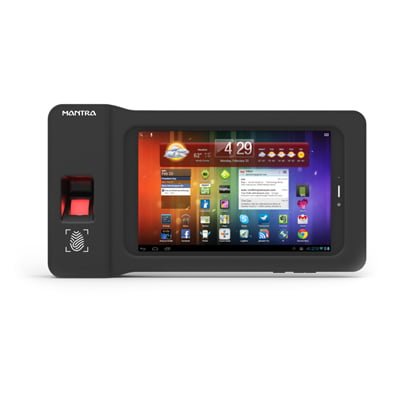

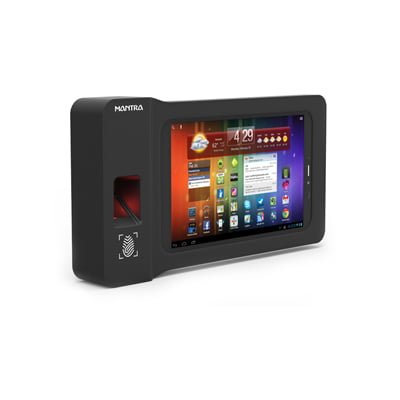

Mantra mDESK8 IRIS & Fingerprint Biometric Device Elegantly Combines Fingerprint, IRIS, and standard Android tablet into a beautiful but rugged casing.
Mantra mDESK8 IRIS & Fingerprint Biometric Device compact design and state-of-the-art mobile chipset empower multiple identity-based solutions. This can be connected to a Bluetooth printer to serve as a ticketing machine.
This can also be interfaced with PINPAD for any Credit Card/Debit Card transactions. The device is embedded with Android Marshmallow and with Services for Fingerprint Sensor.
Any programmer can write simple programs to write any Fingerprint-related applications. Once up and running, its 16GB Flash can store around 100,000 Fingerprint templates/Photos and 100,000,000 transactions.
Product Features:
- UIDAI/STQC Approved Fingerprint Sensor & IRIS Sensor.
- 5MP AF & 2MP FF Camera for Aadhaar QR Code Reading.
- 16GB Flash for storage of Fingerprint Templates/Photos with Transactions.
- Quad-Core Processor & Android Marshmallow
- 3G/4G/GPS/Bluetooth/WiFi Connectivity.
- External Power Button, Volume Button, SIM & SD card slot, USB 2.0
Product Specifications:
| Spatial Resolution | 50% 1.0 LP/mm |
|---|---|
| Pixel Resolution | > 10 pixels/mm |
| Image Margins Left & right | >=0.6x iris radius |
| Top & bottom | >=0.2x iris radius |
| Imaging Wavelength | 700-900 nm |
| Pixel Depth | 8 bits/pixel |
| Output Image | KIND1 to KIND7 with JPEG2000 compression |
| Capture Mode | Auto capture with built-in quality check |
| Capture time | < 2 Sec |
| Safety Exempt Group | per IEC 62471:2006-07 |
| ESD Air | Discharge+-8 KV, contact type+-4Kv |
| Radiated Emission | FCC part15B/IEC: CISPR 22 CLASS B standard |
| Radiated Immunity | As per IEC/EN 61000-4 3:2006+A2:2010 |
| Health Safety | RoHS compliant |
| Connectivity | USB 2.0 / USB 1.1 |
| Operating System | Support Windows XP, Win7, Win2008, Android, Linux, Embedded Linux |
