Face Scan Access Control MBIO FM01 | Mantra

Face Scan Access Control MBIO FM01 | Mantra

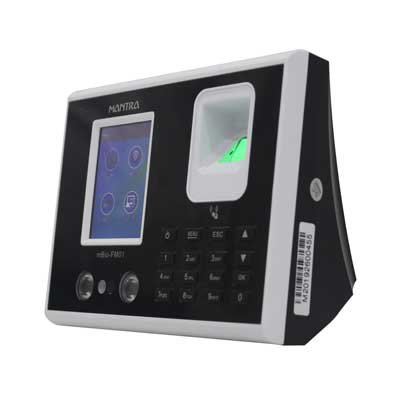

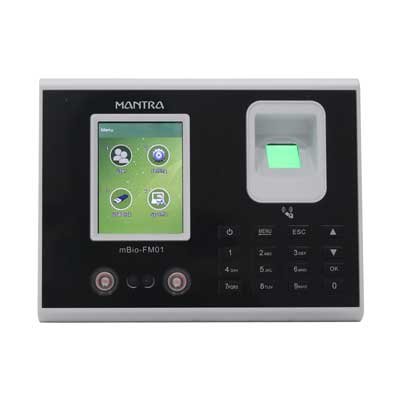

Face Scan Access Control MBIO FM01 has been designed and developed by Mantra FM01 a low-cost Facial recognition terminal with multimode biometrics technology. Multi-identification validation methods by RFID card, Fingerprint, and Face capture combination.

The 2.8-inch TFT high-definition color display with an elegant feel. The FM01 has TCP/IP communication, P2P network real-time communication, and real-time transport data with WIFI.

Face Scan Access Control Contactless Face capture attendance, easy to adjust. High recognition ability for face capture image even when wearing glasses, the identification time is less than 0.8 second. It is possible to integrate all kinds of applications like ERP, HRMS, Payroll, Attendance, and SAP with the device.

Product Specification:

Body

Display	2.4″ Color LCD Screen

Functionality

Faces Capacity	1000
Fingerprint Capacity	5000
ID Card Capacity	5000
Record Capacity	300000
Card Type	Proximity card
Camera Lens	Two high-definition camera
LED Infrared Lamp	Two imported ultra-bright lamp
Identify mode	Face, Finger, Card, Password
LED Indicator	NA
Voice Prompt	Yes
Identification Time	≤1.5sec
Keypad Type	T9 input
Wiegand/RS485 Interface	NA

Technical Specification

Fingerprint scanner type	600 DPI Optical Sensor

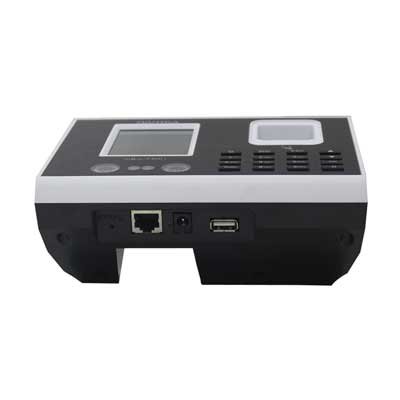

Communication	TCP/IP, USB
Internal Battery	Inbuilt Battery Back-up
Push Data Technology	Yes
FRR	0.01
FAR	0.0001
Operation Humidity	20% ~ 80%
Operation Temperature	10° C ~ 60° C
Power	DC 9V 1A
Finger placement angle	360° rotation allowed

Accessories

Wiring Connections	Electric Lock
