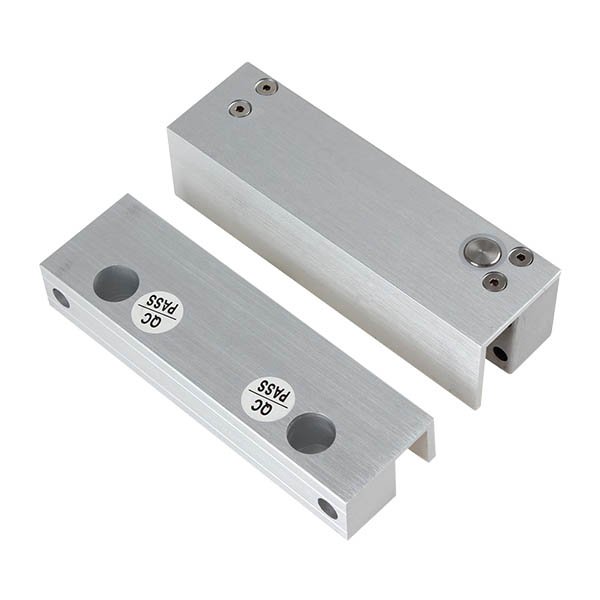

eSSL Glass Door Bolt Lock | ES 1096AW
eSSL Glass Door Bolt Lock ES 1096AW is a fail-safe operation type lock. It works on Low Temperature. It is Safe and Durable. Environmental protection lock consumes low power.
eSSL Glass Door Bolt Lock comes with PCB which is Reverse current protected. It is made of superior-strength aluminum alloy and a solid stainless steel bolt.
eSSL Glass Door Bolt Lock ES 1096AW has dynamic holding force capacities. A “fail-safe” magnetic lock requires power to remain locked. It is not suitable at places where high security is involved as it is possible to disable the lock by disrupting the power supply.
eSSL Glass Door Bolt Lock can be made possible by adding a magnetic bond sensor to the lock and by using a battery backup with a power supply. Electromagnetic locks are well suited for use on emergency exit doors that are used at fire safety places.
eSSL Glass Door Bolt Lock locks do not have moving parts and are therefore less likely to fail than other types of electric locks, such as electric strikes.
An eSSL Glass Door Bolt Lock electromagnetic lock is a device that consists of an electromagnet and an armature plate. Mainly, there are two types of electric locking devices, “fail-safe”, and “fail-secure”.
A Fail-Secure locking device remains locked when power is lost while Fail-Safe locking devices get unlocked when the power supply is disrupted.
Product Specifications:
eSSL Glass Door Bolt Lock | ||
---|---|---|
Dimension | Magnet(L X W X H ) | 212 x 35mm |
Armature Plate(L X W X H ) | 90 x 25 x3mm | |
Current | 950mA | |
Power | DC 12 V | |
Electrode | Red | Positive |
Black | Negative | |
Bolt Size | 15.5mm diameter Stainless, Out throw 15mm | |
Environment | Temperature | 10°C – 55°C |
Operating Humidity | 0%-95% (Non-Condensing) | |
Suitable For | Wooden Door, Glass Door, Metal Door | |
Optional Accessories | U Bracket, U Bracket for Glass Door | |
Features | ||
Fail-safe operation | ||
Low Temperature, safe & Durable | ||
Low Power, Environmental Protection | ||
Reverse current protection PCB | ||
Superior Strength Aluminum Alloy, Solid Stainless Steel Bolt |
