Data Card Printer for Plastic PVC Cards – SD360 | IDTech

Data Card Printer for Plastic PVC Cards – SD360 | IDTech

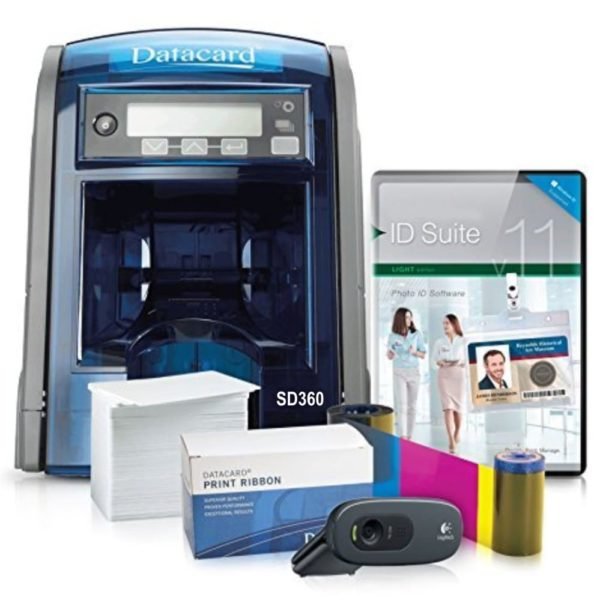

Out of the wide range of Data Card Printer provided by us, the Data card Printer SD360 Printer is one of its types that offers an economical printing solution along with its compact design, fast, easy to install and to start operations.

Advantages of Datacard Printer SD360:

• Superior speed and productivity.Data Card Printer Print more cards in less time. SD Series printers are significantly faster than any other desktop card printers in their class. And TruePick™ anti-jam card handling accurately picks cards —­ standard and thin ­— with no adjustments.
• Superb image quality for high-impact IDs. Data Card Printer New TrueMatch™ printing technology — an industry exclusive — ensures the colours on your screen closely match the colours on your card. Batch after batch, you get consistently crisp, clean printing results from the first card to the last.
• Easy operation that anyone can master. Data Card Printer Intuitive icons guide you through the soft-touch control panel and LCD screen. Cards and supplies are easy to load, and the ergonomically designed ribbon cartridge includes a drop-in cleaning roller.
• All the right connections for easy setup. Data Card Printer Standard USB/Ethernet ports and the browser-based Printer Manager help you integrate SD Series printers into just about any application or IT environment.

Product Key Features:

• Two-sided (duplex) card printing
• Colour and monochrome printing
• Reloadable supply cartridges with a drop-in cleaning roller
• Automatic 100-card input hopper (with exception of card slot), and 25-card output hopper
• Optional 200-card input hopper and 100-card output hopper
• SDK support for third-party application development
• Intuitive LCD panel with soft-touch controls
• Optional smart card and magnetic stripe encoding
• Standard Ethernet and USB connectivity

Data card Printer SD360 Standard Features and Specifications:

Print technology	Direct-to-card dye-sublimation/resin thermal transfer
Print Capabilities	One- or two-sided, edge-to-edge printing Full-color and monochrome printing Alphanumeric text, logos, and digitized signatures; 1D/2D barcode images Printer pooling/sharing UV Printing
Print resolution	300 dots per inch, 256 shades per colour panel High-quality mode: 300 x 600 dots per inch; enhanced text, bar code, and graphics printing 300 x 1200 dots per inch; enhanced text and bar code printing
Print speed**	Full-colour printing: up to 200 cards per hour, one-sided (YMCKT*); up to 155 cards per hour, two-sided (YMCKT-K*) Monochrome: up to 830 cards per hour, one-sided (black HQ*)
Card capacity	Automatic feed: 100-card input for 0.030 in. (0.76 mm) cards; 25-card output standard
Physical dimensions	L 21.2 in. x W 6.9 in. x H 8.8 in. (53.9 cm x 17.5 cm x 22.4 cm)
Weight	12.0 lbs (5.4 kg) (depending on options)
Connectivity	Bidirectional USB 2.0 high speed; Ethernet 10 Base-T/100-Base-TX (with activity light)
Warranties	36-month standard depot warranty; 30-month printhead warranty (no pass restrictions). Full warranty details can be found in the printer documentation kit.

Datacard Printer SD360 Options

Magnetic stripe encoding	Field upgradable ISO 7811 three-track option (high- and low-coercivity) JIS Type II single-track option Support for standard and custom data formats
Smart card personalization	Factory optionsSingle-wire contact/contactless all-in-one encoder (read/write) for MIFARE, ISO7816, ISO14443   A/B, ISO15693, ISO FeliCa, DESFire). As per financial card requirements. Two-wire contact/contactless all-in-one encoder (read/write) for MIFARE/DESFire, ISO7816, ISO14443, A/B As per financial card requirements. DUALi Single Wire Contact/Contactless Encoder, ISO 7816, ISO 14443, Mifare, Desfire & Felica Field upgradeable options Single-wire contact/contactless all-in-one encoder (read/write) for MIFARE, ISO7816, ISO14443 A/B, ISO15693, ISO FeliCa, DESFire). As per financial card requirements. Two-wire contact/contactless all-in-one encoder (read/write) for MIFARE/DESFire, ISO7816, ISO14443, A/B As per financial card requirements. iCLASS® by HID, read/write encoder or read-only PC Prox by HID, read-only Third-party OEM smart card option-ready (for contactless readers only – encoder not included) Third-party OEM smart card option-ready (for contact readers only – encoder not included) DUALi Single Wire Contact/Contactless Encoder, ISO 7816, ISO 14443, Mifare, Desfire & Felica
OpenCard*	Factory-only option supports one- or two-sided printing Full-color and monochrome printing Front exception card slot supported Supports legacy OpenCard formats Ethernet or USB
End-user upgradable option	Extended 200-card input hopper Extended 100-card output hopper KL-style security lock for the printer
