Contact Chip Card Reader HID Omni Key 3021 USB| IDTech
The Contact Chip Card Reader Writer provided by ID Tech Solutions is one of the leading USB NFC Smart Card Reader Writers also known as OTG NFC Card Reader Writers or contact card reader writers.
This Contact Chip Card Reader can also be used for all types of contact smart cards and contact smart cards. This is highly recommended for all types of NFC Smart cards reading and writing on the go.
The Contact Chip Card Reader be easily connected to any PC or Desktop. Contact Chip Card Reader is also known as Plug and play smart card reader. This Contact Chip Card Reader is widely used for transactions, payments, verification, identification, and other customized uses.
Portable Smart Contact Chip Card Reader:
- Easy to install – Eliminates the need to install drivers; uses native-supported CCID drivers within the operating system.
- Readily Compliant – Meets all relevant industry standards for smooth integration in the PC environment
- Portable Form Factor – Unique size makes it an ideal reader for large-scale deployments and mass distribution
- Suits Any Application – Compatible with virtually any smart card and major PC operating system

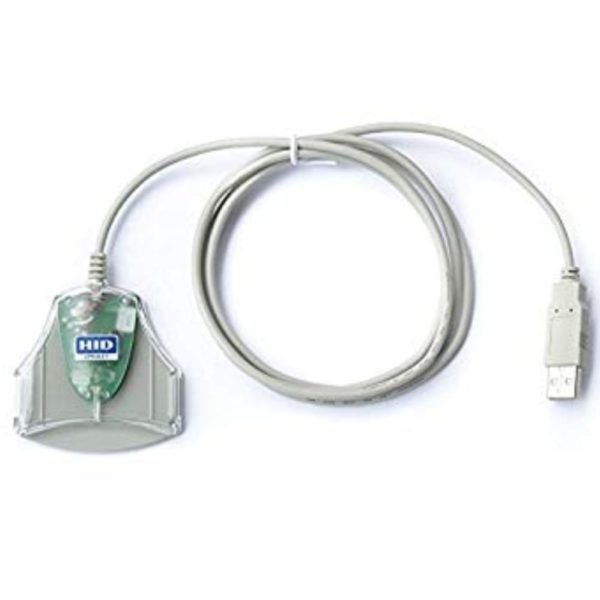

The OMNIKEY® 3021 is a high-performance, Contact Chip Card Reader that features all the trusted performance of OMNIKEY readers in a new and smaller form factor. Compliant with all industry standards, this reader is compatible with virtually any contact smart card, operating system, and a variety of applications.
This handy Contact Chip Card Reader is the ideal choice for large-scale deployments with any type of contact smart card or application software. The 3021 can be easily distributed together with any smart card, including credit cards, e-ID cards, or software for other applications.
Contact Card Reader Product Key Features:
- Meets major standards, including ISO 7816, EMVCo Terminal 1, Microsoft WHQL, USB CCID, PC / SC, and HBCI (Home Banking Computer Interface)
- Usage within an application is based on standardized interfaces like PC / SC
- USB CCID support makes integration into an existing system the easiest ever by connecting the host and smart card reader without the need for additional drivers
- Attractive, small size fits in an envelope to distribute with a smart card, credit card, e-ID card, or software for online banking or digital signature applications
- All major operating systems supported
- Meets GSA FIPS 201 requirements Supports high-speed data transmission UPC barcode for easier logistics
Product Specifications Of Chip Card Reader:
| Base Model Number | OMNIKEY® 3021 |
| SMART CARD INTERFACE | |
| Card Size | ID-1 (Full size) |
| Standards | ISO 7816 |
| Supported Card Types | Class A: 5V @ 60 mA; Class B: 3 V @ 60 mA; Class C: 1.8V @35 mA |
| Protocols | Asynchronous: T=0; T=1 Synchronous: S=8 (I²C) ; S=9 (3-wire); S=10 (2-wire) |
| Insertion Cycles | 100,000 |
| Smart Card Interface Speed | 420 kbps |
| Smart Card Clock Frequency | 8 MHz* / up to 12 MHz* |
| Smart Card detection | Movement detection with auto power-off; Automatic detection of smart card type; Short circuit and thermal protection |
| 8-Pin Handling | C4 / C8 supported |
| HOST INTERFACE | |
| USB Interface | USB 2.0 Full Speed Device (12 MBps)USB 3.0 extended operability, tested with hubs/controllers** |
| Connector / Cable | USB Type A connector; 59.1″ (150 cm) cable |
| Operating Systems | Windows 10**/8.1/8/7/Vista/Server 2012**/Server 2008R2 Windows CE (5*/6/7) depending on hardware Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+; Open SUSE 11.4+ Mac OS X; AndroidTM* |
| Driver | CCID native driver from operating system HID proprietary driver* |
| Supported APIs | PC/SC – API, CT-API* (on top of PC/SC) |
| HUMAN INTERFACE | |
| Status indicator | Blue LED |
| HOUSING | |
| Housing | Transparent/grey polycarbonate |
| Dimensions | 2.91″ x 2.52″ x 0.51″ (74 x 64 x 13 mm) |
| Weight | 1.69 oz (48g) |
| OPERATING CONDITIONS | |
| Operating Temperature | 32-131 F (0-55°C) |
| Operating Humidity | 10-90% RH |
| Storage Temperature | -4 – 176 F (-20 – 80°C) |
| Meantime Between Failure(MTBF) | 500.000 hours |
| COMPLIANCE AND REGULATORY | |
| Compliance / Certification | Microsoft WHQL*; EMVCo Terminal Level 1 USB 2.0; TAA*; GSA Fips 201 approved list* |
| Regional certifications | CE, FCC, UL, VCCI, KCC**, MIC, RCM (C-Tick) |
| Environmental | WEEE, RoHS, Reach |
| OPERATING CONDITIONS | |
| Warranty | One-year manufacturer`s warranty |
