Card Reader RFID USB Dual Boost I ACR1281U-C1 | Mantra

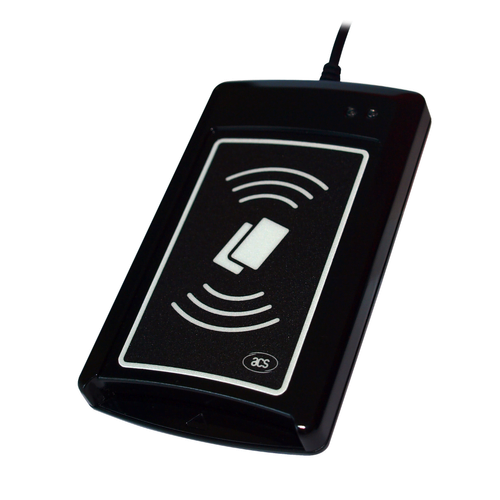

Card Reader RFID USB DualBoost ACR1281U-C1 designed, developed, and manufactured by Mantra ACR1281U-C1 DualBoost II is the second generation of ACS’s ACR128 DualBoost Reader. It is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards.
Card Reader RFID USB ACR1281U-C1 DualBoost II enables one to integrate conventionally separate and independent applications for contact and contactless technologies into one device and one card.
Card Reader RFID USB DualBoost I ACR1281U-C1 I Mantra can be used for online transactions to settle payments securely using credit cards, and it can also be used for topping up contactless cards in automated fare collection systems. It provides the perfect complement to the all-in-one card concept that combines many kinds of smart card applications in just a single card.
The Card Reader RFID USB DualBoost Series has PC/SC compliance for both contact and contactless interfaces. It makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications.

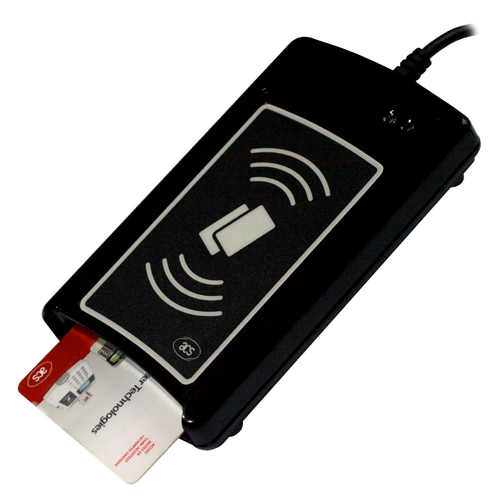

Card Reader RFID USB also provides intelligent support for hybrid and combi cards, such that it detects a contactless card even that has been incorrectly placed in the contact card slot. Lastly, the DualBoost has a built-in SAM slot for added security in both contact and contactless applications.
Card Reader RFID USB Dual Boost I ACR1281U-C1 | Mantra Product Specifications:
| Weight (g) | 140 g |
|---|---|
| Dimensions (mm) | 120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H) |
| Power Source | From USB port |
|---|---|
| Protocol | USB CCID |
| Speed | USB Full Speed (12 Mbps) |
| Connector Type | Standard Type A |
| Cable Length | 2.0 m, Fixed |
| Protocol | T=0; T=1 |
|---|---|
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V) |
| Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL |
|---|---|
| Standard | ISO 14443 A & B Parts 1-4 |
| Protocol | T=0; T=1 |
|---|---|
| Number of Slots | 1 Standard SIM-sized Card Slot |
| Standard | ISO 7816 Class A (5 V) |
| LED | 2 single-color: Red and Green |
|---|---|
| Buzzer | Monotone |
| Firmware Upgrade | Supported |
|---|
| Certifications/Compliance | ISO 14443 ISO 7816 USB Full Speed PC/SC CCID Microsoft® WHQL CE FCC RoHS 2 REACH |
|---|
| Device Driver Operating System Support | Windows® Linux® MAC OS® Solaris Android™ |
|---|
