Automatic Tripod Turnstile Realtime EL128 is one of the best products available for the market. We are the sole distributor of all real-time biometrics products and services.
This product has made milestones in a very short time. It is the best quality stainless steel-made product.

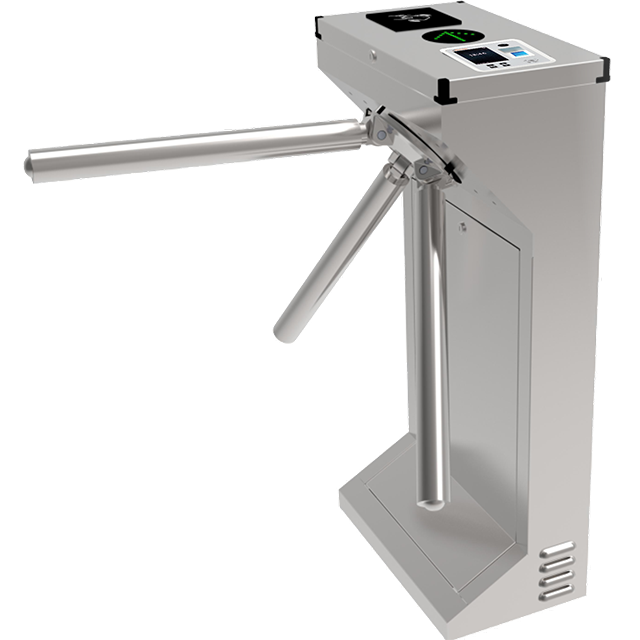

Automatic Tripod Turnstile Realtime EL128 has three arms as you can see in the picture. The automatic Tripod Turnstile automatically detects the card, fingerprint, face, or password then users enter it into the access controller of this tripod turnstile.
After detection of the presence of the user, it releases the arm free for rotation one time to grant access to the user.
After a successful rotation, the turnstile automatically locks the arm that will not be moving for the next user.
The automatic Tripod Turnstile cycle works, again and again, whenever a user wants to enter or exit from the tripod turnstile.
This product is best for queue management in large space areas that are full of human crowds.
Any type of NO, NC, or COM-based controller can be integrated with this tripod. Face, Finger, Card, Password, Vien, and even IRIS methods of access can be supported with the help of access control-based controllers. This machine can work as a slave machine with the controller.
Product Description:
| Card capacity | 3000 |
| Fingerprint capacity | 3000 |
| Max Access log | 2,00,000 |
| Management log | 10,000 |
| Identify mode | Fingerprint, card |
| Display Language | English |
| LED | Colour Display |
| Recognition mode | Card, Finger |
| Control mode | Semi-automatic/ automatic/ manual |
| Access mode | Single/ bi-direction |
| Communication interface | Rs485, TCP/IP, P2P, Web, 4G(Optional) |
| Mode of access control | Professional pattern, Wiegand and output, anti-sneak, anti-trailing |
| Access Speed | 30 person /min |
| Working environment | Indoor and outdoor (canopy is better) |
| Power | AC 220V/ AC 110 V (optional) |
| Temprature of working | -15°c -75°c environment |
| Relative humidity | Less than 95%, non-condensation |
| Size | 1200*280*960mm |
| Unlock time | 0.2s |
| Pass width | 550mm |
| Input | 100V ~ 240V |
| Driving voltage | 24v |
| Environment | -25 ~+ 70°c |
| Power consumption | 30w |
| Input | 12v dry contact |
