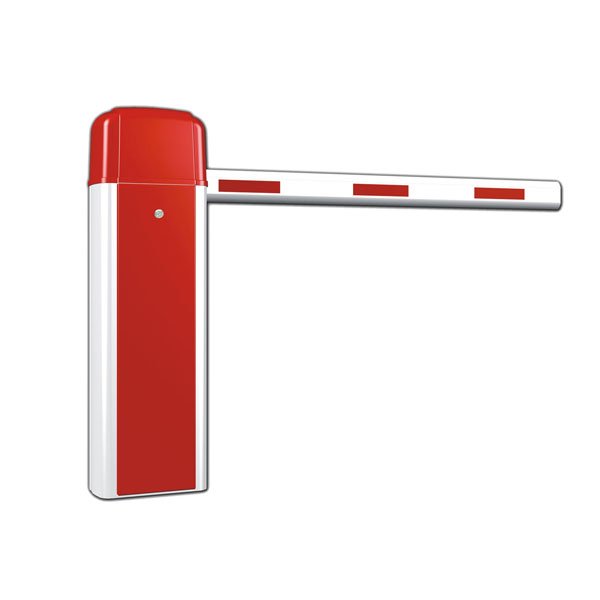

Automatic Boom Barrier System With RFID UHF TAG BG108 | eSSL
Features of the Automatic Boom Barrier system With RFID BG108 boom barrier include Arm Material Aluminium Boom Rest Stand. The maximum length of Boom is ranging from 5.8m to 8m. Time for Up/down (8m 8sec).
Automatic Boom Barrier System auto closing, bumping bounce back, and 3 push buttons (stop/up/Down) to control the motor. Optional Interface with Access control panel, Standalone Access Control, and Control button. Remote-controlled operation Up to 25 meters.
Automatic Boom Barrier System With RFID BG108 Boom gates is an extremely basic form of automated vehicle management. With only a few moving parts, they are reliable, easy to install, and simple to maintain.
The Automatic Boom Barrier System, which is located at the community’s entrance, is equipped with an RFID reader tag. The RFID tag on the vehicle is read by the reader tag on the boom barrier when a car is about to enter the neighborhood, and the boom barrier opens.
Automatic Boom Barrier System sometimes known as an automatic boom gate. They have the appearance of a bar or a pole rather than a gate.
It has a long arm that automatically descends to obstruct the passage of approaching vehicles. Vehicles can pass by raising the bar after presenting a pass, entering a code, or paying a toll.
Product Specifications:
| BG108: Parking Barrier Automated Boom Gate | ||
|---|---|---|
| Basic | The maximum length of Boom | 5.8 up to 8m |
| Arm material | Aluminium | |
| Boom Rest Stand | Yes | |
| Boom Barrier | Time for Up/down | (8m 8sec) |
| Input control signal | Dry Contact | |
| Ingress protection Degree | IP54 | |
| Features | Input Interface for | 1. Photocell |
| 2. Air switch | ||
| 3. Loop detector(Optional) | ||
| Output interface for | Lamp (Optional) | |
| Optional Interface | Access control panel, | |
| Standalone Access Control, Control button (eg: X990) | ||
| Remote Control | Up to 25 meters | |
| Mode | Automatic/Manual | |
| Incorporated control panel with | 3 push buttons (stop/up/Down) to control the motor | |
| Bumping bounce back | Yes | |
| Auto closing time | 1 – 80s | |
| General Specification | SMPS – Input | AC 220V / 110V, 50Hz / 60Hz |
| Motor power | 90W, 220V AC | |
| Dimension(mm) | 268 X 348 X 1050 | |
| Operating Temprature | -20oC to +50oC | |
