Automatic Boom barriers, also known as a boom gate, is a bar, or pole pivoted to allow the boom to block vehicular access through a controlled point. Typically the tip of a boom gate rises in a vertical arc to a near-vertical position.

Boom gates are spring balanced so the pole is easily tipped. Electro-mechanical boom barriers can be operated continuously and in an intensive duty cycle.

Automatic Boom Barriers offer efficient security at exit and entry points of factories, office complexes, condominiums, parking lots, toll plazas, or any roadway entry where medium to heavy traffic is expected.

The boom barrier is aesthetically designed with sleek and modern looks. Its feature includes an optional anti-crush safety device, which suspends the motion of the boom, should it meet any obstruction. Optional beam sensor provides further protection to vehicles. Auto-close of the boom barrier can be programmed through the controller.

Automatic boom barriers provide practical and cost-effective traffic management solutions. Boom barriers are reliable require little maintenance and can interface with any access control system. These barriers are designed for 24/7 operations at very high-traffic solutions.

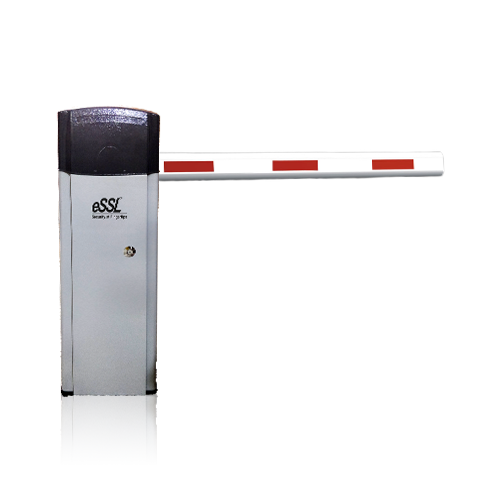

Automatic Boom Barrier Parking Gate eSSL BG-100 Product Specifications:

Standard	Maximum Length of boom	6M
	Opening Time (Up/Down)	6 s
	Ingress Protection degree	IP54
	Mode	Automatic/Manual
	Auto-closing time	1-80s
	Dimension (in mm)	268 X 348 X 1050
Hardware	Boom Rest stand	Yes
	Arm Material	Aluminium
	Remote Control	Yes (up to 25 meters)
	Operating Temperature	-20°C to +50°C
Standard Functions	Incorporated Control Panel	3 Push Buttons: STOP/UP/DOWN to control the motor
Special Functions	Input Interface for	1. Photo Cell,
		2. Air Switch,
		3. Loop Detector
Optional Functions	Optional Interface	Access Control Panel, Standalone Access Control, Control Button
	Bumping bounce back	Optional
Communication	Input Control Signal	Dry Contact
	Output Interface	Lamp
Power	SMPS Input	AC 220V/110V, 50 Hz/60 Hz
	Motor Power	90W, 220V AC
Features	Can be controlled by 3 position switch or by the remote control unit, operating ‘OPEN’, ‘CLOSE’, and ‘STOP’
	Machine core with compression spring effectively avoids accidents caused by spring breaking
	Motor cooling fan, solving the problem of heat-protection
	Double safety limit switches (Optional)
	Auto-close function
	Manual release
	Duty Cycle intensive
	MCBF: 30 Lakhs
	Supports external and internal Loop Detectors (Optional)
	Traffic Light Interface (Optional)
	Wire control (switch signal)/Remote Control (up to 25 m)
	Compatible with Wiegand and RFID Readers.
	Compatible with biometrics
	Die-casting aluminum alloy motor, precision and good at thermal radiating.
	Support the infrared photocell for anti-bumping function (optional)
