Access Control SEM01 / SMF01 | Mantra

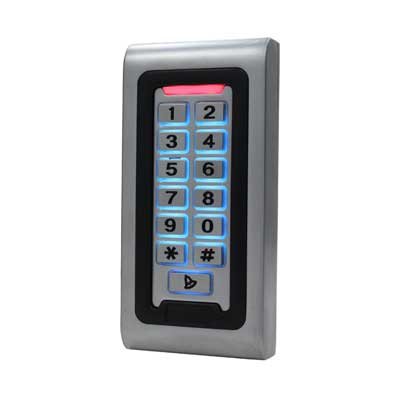

The unit is a single-door multifunction standalone access controller with a Wiegand output keypad or a card reader. It is suitable for mounting either indoors or outdoors in harsh environments.
It is housed in a strong, sturdy, and vandal-proof Zinc Alloy electroplated case, which is available in either a bright silver or matte silver finish.
The electronics are fully potted so the unit is waterproof and conforms to IP65.
The inbuilt card reader supports 125KHZ EM cards and 13.56MHz Mifare cards. The unit has many extra features, including lock output current short circuit protection, Wiegand output, and a backlit keypad.
These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks, and prisons.
Windows and Wap Access Control | SEM01 / SMF01 | Mantra
Product Specifications:
| Battery | NA |
|---|---|
| Body | Strong Zinc Alloy Electroplated anti-vandal case |
| Dimension | 12*56*20 mm |
| ID Card Capacity | 2000 |
|---|---|
| Record Capacity | NA |
| Card Type | Proximity card, Mifare (optional) |
| Identify mode | Card, Password |
| LED Indicator | 3 LED Status (Green, Yellow, Red) |
| Keypad Type | Numeric Backlight keys |
| Wiegand/RS485 Interface | Wiegand Input & Output 26/34 bit |
| Waterproof | Conforms to IP68 |
| Communication | NA |
|---|---|
| Operation Humidity | 10% ~ 90% |
| Operation Temperature | 10° C ~ 60° C |
| Power | DC 12V 3A |

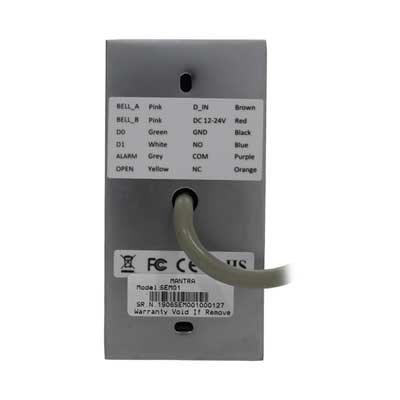

| Wiring Connections | External Card Reader, Electric Lock, Exit Button, Alarm, Bell |
|---|
