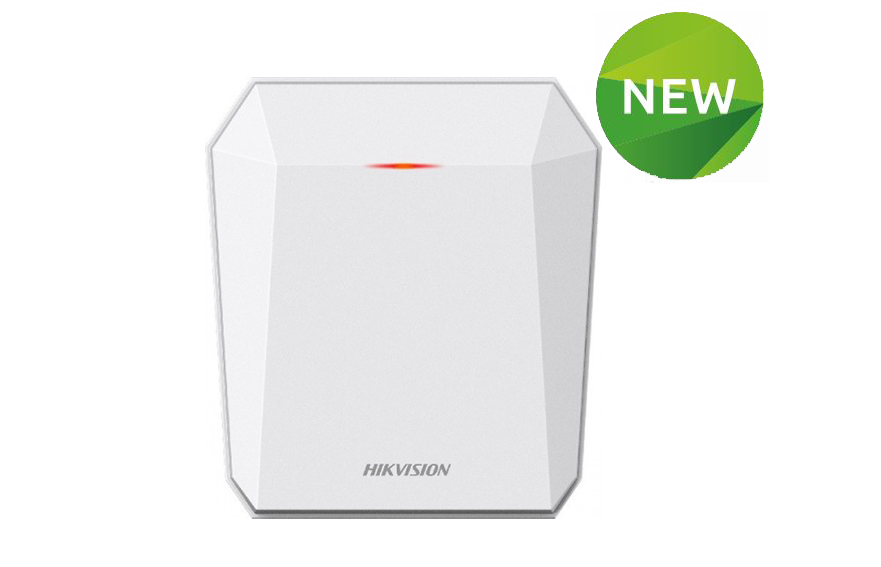

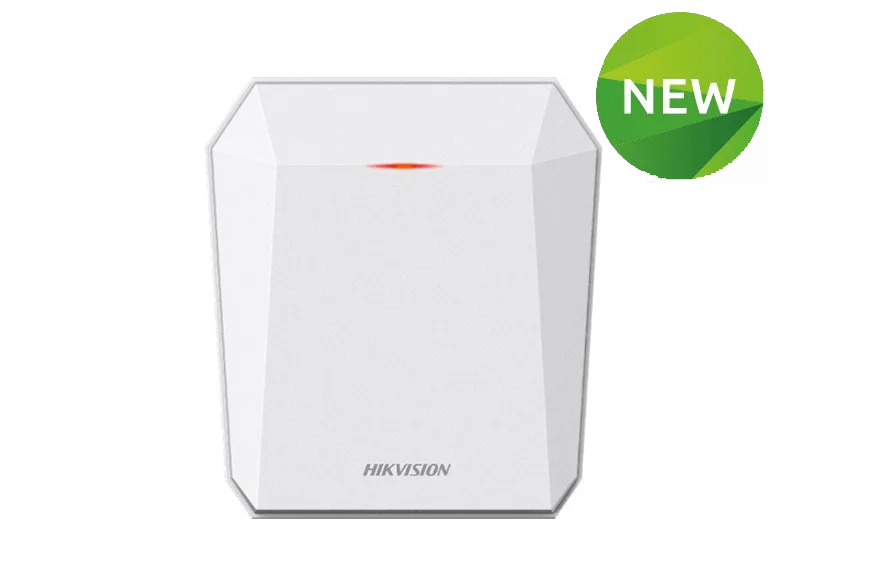

Hikvision’s DS-PRI120 Security Radar Systems features phased array technology, pulse-Doppler, and low-power FMCW modulation technology for intrusion detection. It supports multi-target positioning, tracing, and multiple-linked camera tracking.
The Security Radar Systems DS-PRI120 by Hikvision is a high-performance radar system designed to detect and track intruders in a wide range of environments. The system is equipped with advanced signal processing algorithms that can accurately detect and track targets in harsh weather conditions, such as rain, fog, and snow.
The DS-PRI120 has a detection range of up to 120 meters and can cover an area of up to 12,000 square meters. The system is easy to install and can be configured to trigger alarms or activate cameras when an intruder is detected.
The system is designed to work in conjunction with other security systems, such as cameras and access control systems, to provide a comprehensive security solution. The DS-PRI120 is ideal for use in a wide range of applications, including critical infrastructure, airports, seaports, and other high-security environments.
Cutting-edge technology for Advanced Surveillance
Experience a new era of security with the Hikvision DS-PRI120 Security Radar System. Employing state-of-the-art radar technology, this system goes beyond traditional surveillance methods. Detect and track intruders in real-time, covering expansive areas with pinpoint accuracy. Elevate your security game and stay steps ahead of potential threats.
Seamless Integration with Existing Systems
Upgrade your security infrastructure effortlessly with the Security Radar Systems DS-PRI120’s seamless integration capabilities. This Security Radar System harmoniously syncs with your existing CCTV and alarm systems, creating a unified defense network. Benefit from a holistic security approach, where every layer works in synergy to provide comprehensive protection. Invest in peace of mind with Hikvision.
User-Friendly Interface for Intuitive Operation
Simplify security management with the Security Radar Systems DS-PRI120’s user-friendly interface. Designed for ease of use, the system empowers you to take control effortlessly. Customize settings, monitor alerts, and manage security protocols with intuitive navigation. Enhance your security operations without the need for extensive training – it’s security made simple.
Key Features:
- Advanced signal processing algorithms for accurate detection and tracking of targets in harsh weather conditions.
- Detection range of up to 120 meters and a coverage area of up to 12,000 square meters.
- Easy to install and configure.
- Can be integrated with other security systems to provide a comprehensive security solution.
- Ideal for use in critical infrastructure, airports, seaports, and other high-security environments.
Product Specification:
| Power supply | 12VDC, POE |
|---|---|
| Surveillance angle (°) | 120 |
| Anti-masking | Yes |
| Consumption [mA] | From 250 to 500 |
| Current min [mA] | 250 |
| PIR technology | Pulse doppler and low-power FMCW modulation technology |
| Mounting height [mm] | From 1.2 to 4 |
| Min. Mounting height (m) | 1.2 |
| Vandal-proof | No |
| Disqualification | Yes |
| Detection areas | 4 |
| Coverage [m] | 120 |
-
Maximum 4 Trigger Lines and 16 Zones
-
Link up to 4 Separately-Mounted Speed Domes for Auto Target-Tracking
-
Multiple Radars Can Link to 1 Speed Dome
-
Detects Ultra-Slow Movement, Squatting Movement, Creeping
-
Open Mode, Shrub Mode, and Custom Mode
