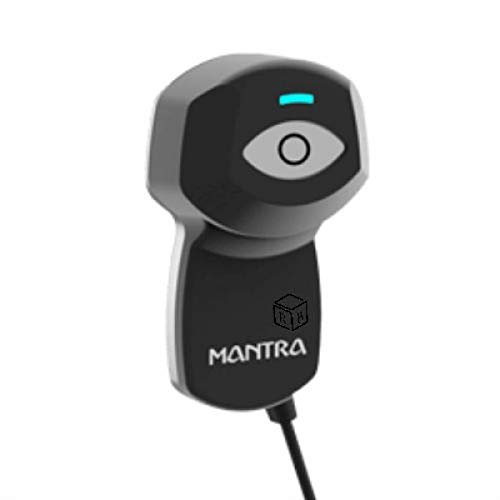

Biometric IRIS Recognition System MIS 100
The industry’s first Biometric IRIS Recognition System MIS 100 V2 by Mantra to employ face display-based subject positioning now incorporates a TOF sensor for even faster and more robust subject detection. MIS 100 V2’s user experience is faster, smoother, and highly intuitive. Unique and highly innovative face display positioning. The expanded capture range of 35 to 45 cm. All image processing is done on the internal mainboard, including iris encoding and matching.
Product Description:
- On-board data storage : Standard: 10,000 iris template pairs (useful for 1:N authentication mode) with a match speed of about 1.0 seconds.
- Optional: 40,000 iris template pairs with match speed in 1:N mode of about 1.0 second Face database size of 1,000 face templates, with 1:N match speed of about 1.0 second.
- Dual factor authentication with iris recognition: Smart card and PIN options for more secure authentication.
- Iris image pixel resolution: 640 x 480 pixels, 8-bit depth. Supports multiple formats.
- Iris time of capture: Typically about 0.5 seconds from the time the subject’s eyes are properly placed within the capture volume.
- IR illumination for iris imaging: Dual wavelength LEDs (spectral range of 700 to 900 nm) that conform to ISO best practices for iris imaging.
- Face image capture: Standard 24-bit color and NIR, both accessible from SDK.
- Weight: 630 g without wall plate.
- Network interface, standard: 10/100 Base-T Ethernet (RJ45 connector).
- State-of-the-art optical design: The optical design includes utilizing the highest quality optics and very fast shutter speeds, which allows the systems to exceed industry standards for image quality.
- Advanced, proprietary stereoscopic eye localization: The MIS 100 V2 accurately locates in real time the position of both eyes in 3D to optimize subject ease of positioning and iris image quality. This feature enables fast and reliable subject distance positioning indicators shown as blue, green, or red color codes.
- Highest image quality: Meets or exceeds the ISO 19794-6 2011 and ISO/IEC 29794-6 iris imaging specifications.
- Compact, lightweight design: Optimizes placement or mounting options, including the wall, swing-arm, or eGate mounting solutions.
Product Specifications:
| Capacity | 10,000 iris template Optional: 40,000 iris template pairs 1,000 face templates |
|---|---|
| Display | Iris image pixel resolution: 640 x 480 pixels, 8-bit depth |
| Interface | Network interface, standard: 10/100 Base-T Ethernet (RJ45 connector) |
| Dimension | No |
| General info | Standard: 10,000 iris template pairs (useful for 1:N authentication mode) with a match speed of about 1.0 second Optional: 40,000 iris template pairs with match speed in 1:N mode of about 1.0 second Face database size of 1,000 face templates, with 1:N match speed of about 1.0 second Dual factor authentication with iris recognition: Smart card and PIN options for more secure authentication Iris image pixel resolution: 640 x 480 pixels, 8-bit depth Network interface, standard: 10/100 Base-T Ethernet (RJ45 connector) |
